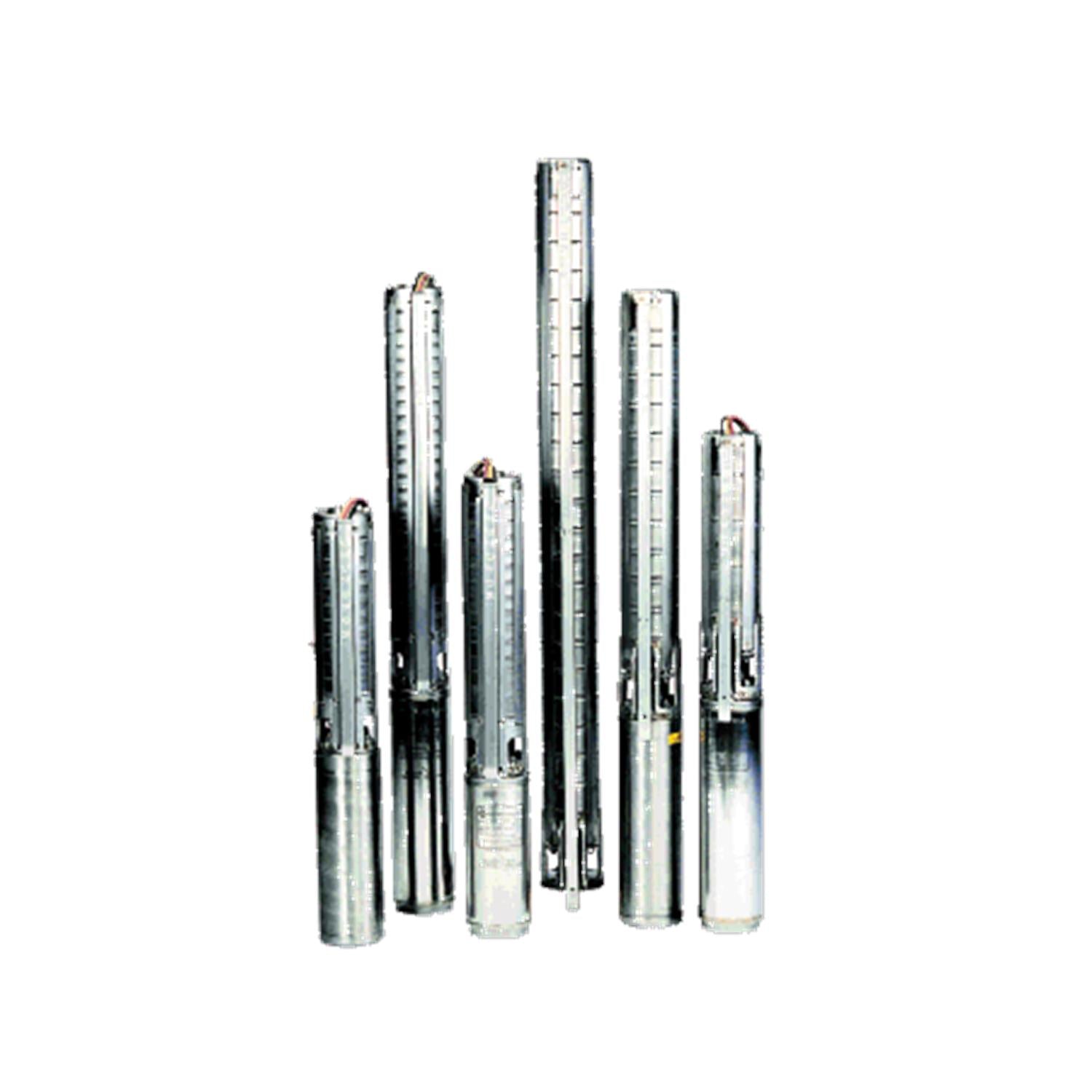

Image shown may not be actual product
Grundfos 98924576 - 35S100-38
Grundfos 98924576 - 35S100-38
Grundfos 98924576 - 35S100-38
Grundfos 98924576 - 35S100-38
Grundfos 98924576 - 35S100-38
Grundfos 98924576 - 35S100-38

Grundfos 98924576 - 35S100-38

GRUNDFOSSKU: 98924576
Price:
$9,800.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

35S100-38 | Multi-stage submersible pump for raw water supply, groundwater lowering and pressure boosting. Thepump is suitable for pumping clean, thin, non-agressiveliquids without solid particles or fibers. horizontal and vertical installation. The pump is fitted with a built-in non-return valve. The motor is a 3-phase motor of the cannedtype with a sand shield, liquid-lubricated bearingsand pressure-equalizing diaphragm.

Maximum operating pressure 870.23 psi
Power factor 1 0.84-0.83-0.80
Type of connection NPT(F)
Rated voltage 3 x 440-460-480 V
Thermal protec external
KVA code G
Starting current 410-440-470 %
Liquid temperature range 5 .. 104 °F
Insulation class (IEC 85) F
Built-in motor protection NONE
Net weight 151.0 lb
Rated speed 3450-3470-3480 rpm
Gross weight 234.0 lb
Rated power - P2 10 HP
Size of connection 1 1/2 inch
Maximum outlet pressure 500.38 psi
Enclosure class (IEC 34-5) IP68
Power (P2) required by pump 10 HP
Shaft Product name:35S100-38
Rated current 17.4-16.8-16.6 A
Service factor 1.15
Windings Enamelled
Motor type MS6000
Motor diameter 6 inch
Minimum borehole diameter 5.71 in
Motor flange design NEMA
DOE Pump Energy Index CL 0.87
Pump speed on which pump data are based 3450 rpm
Stages 38
Shaft seal for motor SIC/SICNBR
Approvals CULDWUS,CCSAUS
Rated flow 36.5 US gpm
Model A
Version T40
Diameter 5.71 in
Motor Stainless steel
Approvals for drinking water PROP65
Return valve YES
Rated head 813.7 ft
Type MS6000
Curve tolerance ISO9906:2012 3B
Motor version T40
Impellers NONE
Valve YES
Connection 1 1/2 inch
Impeller Stainless steel
Number of reduced-diameter impellers NONE
Pump 10 HP

Motor Curves

Dimensional Drawing

DWiring Diagram
