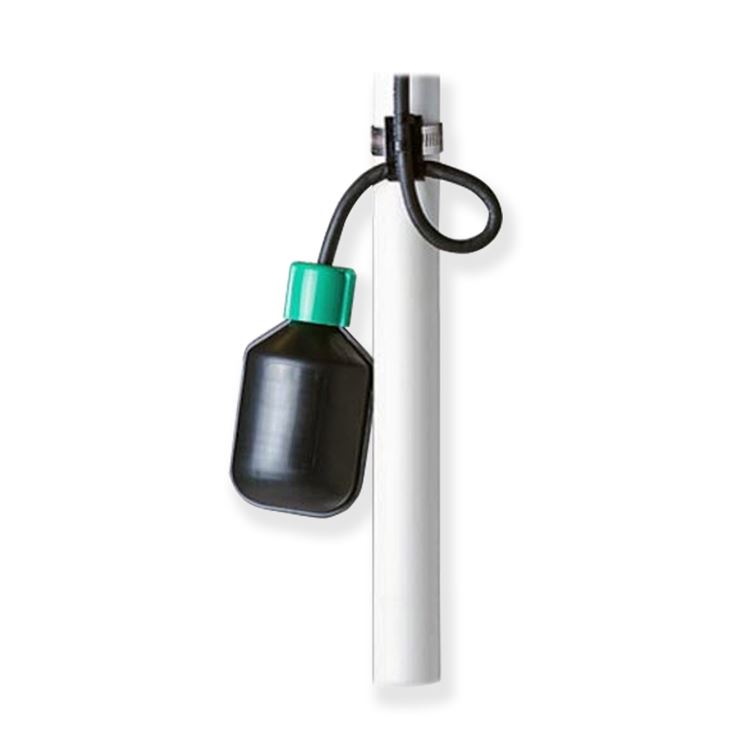

Barmesa BP15SGMSPDTPC Narrow Angle SPDT Pump Level Control

The Barmesa BP15SGMSPDTPC Narrow Angle SPDT Pump Level Control is Used to Accurately Monitor High (Normally Open) or Low (Normally Closed) Liquid Levels to Activate Pump Control Panels and Alarms in Water and Sewage Applications. It Features a Green Colored Cap for Easy Identification of SPDT Control Switch. This Switch can be Wired to Work in Either Normally Open or Normally Closed Applications.

Barmesa BP15SGMSPDTPC Narrow Angle SPDT Pump Level Control Features
Can be Wired to Work in Either Pump Down (Normally Open) or Pump Up (Normally Closed) Applications (Single Pole, Double Throw)
Mechanically-Activated, Snap Action Contacts.
High Impact, Corrosion Resistant, Polypropylene Float Housing
Not Sensitive to Turbulence.
Control Differential of 1.5 inches (4 cm) Above or Below Horizontal.
Green Colored Cap for Easy Identification of SPDT Control Switch.
Includes Standard Mounting Clamp and Boxed Packaging
15' Control Switch with Clamp
UL & CSA Certified.
OPTIONS
In Standard Cable Lengths of 15, 25 or 50 Feet (5, 8 or 15 meters).
Two Mounting Options for Flexibility in Installation: Mounting Clamp: for Applications Where the Float can be Attached to a Discharge Pipe or Similar Mounting Device and Externally Weighted, for Applications Where the Float can be Suspended From Above.
