Barmesa BCSF 2x3-7 Stainless Steel End-Suction Pump Kit Frame Size 145-184 JM | 230V | 460V | Single Phase | Three Phase | 20 HP | 5 HP | Stainless Steel | 250°F | 121°C

Save $930.20 This item ships free!
BarmesaSKU: 31076711

Price:
Sale price$3,720.80 Regular price$4,651.00
or Call for most up to date lead times. (781) 281-8905

Description

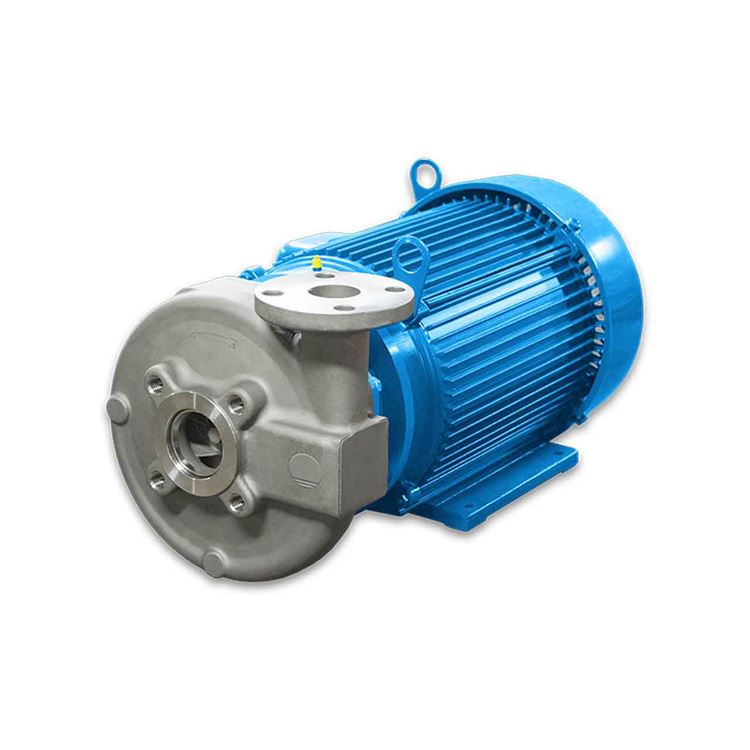

Barmesa BCSF Series Stainless Steel End-Suction Pump Kit (Pump Kit Less Motor) Features
NEMA Standard JM Shaft Extension from 3 to 20 HP at 3500 RPM and 0.5 to 5 HP at 1750 RPM. Single Phase Motors are 115/208-230V. Three Phase Motors are 208-230/460V. Overload Protection Must be Provided.
Seal is Mechanical Type 01, Carbon/Silicone-Carbide Faces, Viton Elastomers 316 Stainless Steel Metal Parts.
Impeller is made of AISI316 Stainless Steel
2.0" or 3.0" Flange Horizontal Suction
1½" or 2.0" Flange Verical Discharge
Maximum Temperature: 250°F (121 °C)
Kit Includes Mechanical Seal, Hardware & Gaskets

Motor Curves
