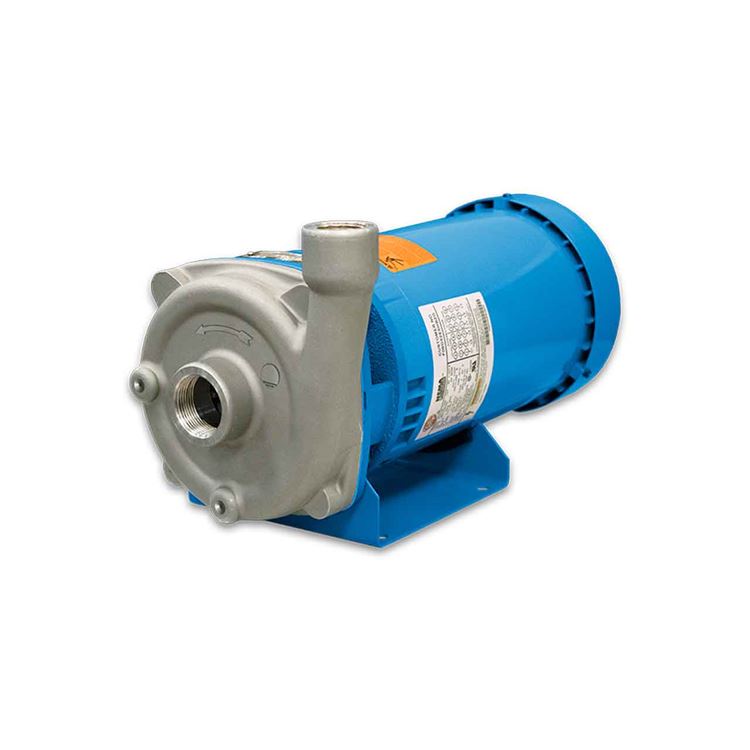

Barmesa BCS 1x1 1/4-5 Stainless Steel End-Suction Pump Kit Frame Size 56J | 230V | 460V | Single Phase | THREE PHASE | 3.0 HP | 0.5 HP | 3 HP | Stainless Steel | 250°F | 121°C

Save $399.40 This item ships free!
BarmesaSKU: 31076701

Price:
Sale price$1,597.60 Regular price$1,997.00
or Call for most up to date lead times. (781) 281-8905

Description

Barmesa BCS Series Stainless Steel End-Suction Pump Kit (Pump Kit Less Motor) Features
NEMA Standard 56J Frame Motors from 0.75 to 3.0 HP at 3500 RPM and 0.5 HP at 1750 RPM. Open Drip Proof and Totally Enclosed Fan-Cooled.
Single Phase 115/230V (3HP Model is 230V only) Built in Overload with Reset Provided. Three-Phase 208-230/460V. Overload Protection Must be Provided.
Seal is Mechanical Type 01, Carbon/Silicone-Carbide Faces, Viton Elastomers 316 Stainless Steel Metal Parts.
Impeller is made of AISI316 Stainless Steel
1¼" or 1½" NPT Horizontal Suction
1" or 1¼" NPT Vertical Discharge
Maximum Temperature: 250°F (121 °C)
Kit Includes Mechanical Seal, Hardware & Gaskets

Motor Curves
