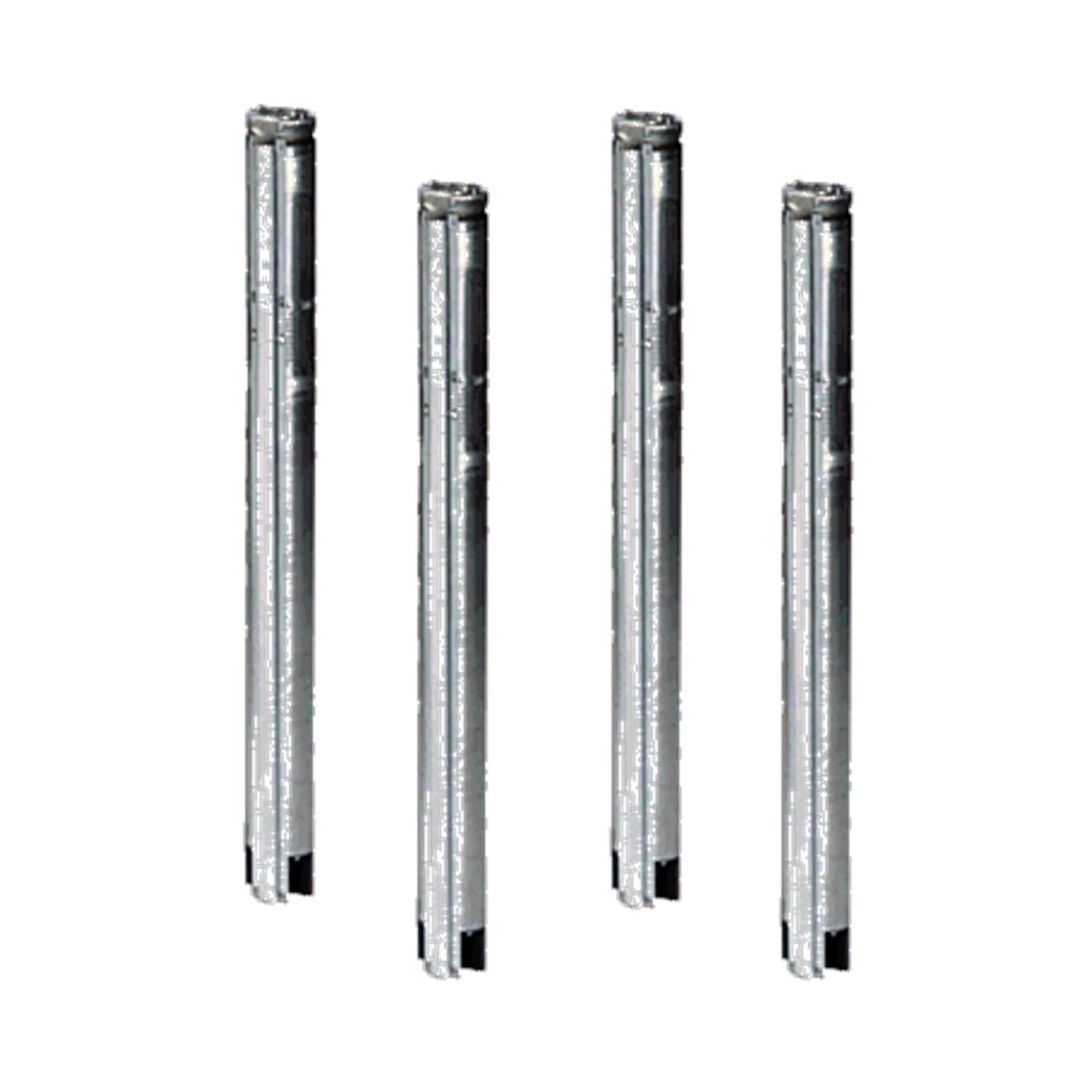

![Grundfos 96160172 - 30 SQ05-40]()
![Grundfos 96160172 - 30 SQ05-40]()
![Grundfos 96160172 - 30 SQ05-40]()
![Grundfos 96160172 - 30 SQ05-40]()
Description
Grundfos 96160172 - 30 SQ05-40 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
Maximum operating pressure
217.56 psi
Power factor 1
1
Rated voltage
1 x 100-115 V
Thermal protec
internal
Power input - P1
1.09 kW
Pump outlet
1 1/2"NPT
Liquid temperature range
32 .. 95 °F
Insulation class (IEC 85)
F
Built-in motor protection
Y
Net weight
12.1 lb
Rated speed
10700 rpm
Gross weight
13.5 lb
Rated power - P2
0.939 HP
Enclosure class (IEC 34-5)
IP68
Power (P2) required by pump
0.979 HP
Rated current
0
Service factor
1.85
Length of cable
4.92 ft
Sales region
Namreg
Motor type
MS3
Minimum borehole diameter
2.99 in
Stages
1
Approvals
cULus
Rated flow
30.8 US gpm
Model
B
Diameter
2.99 in
Motor
Stainless steel
Return valve
Product name:30 SQ05-40
Rated head
29.53 ft
Type
MS3
Curve tolerance
ISO9906:2012 3B
Valve
pump with built-in non-return valve
Impeller
Composite
Pump
0.979 HP
Motor Curves
