Description

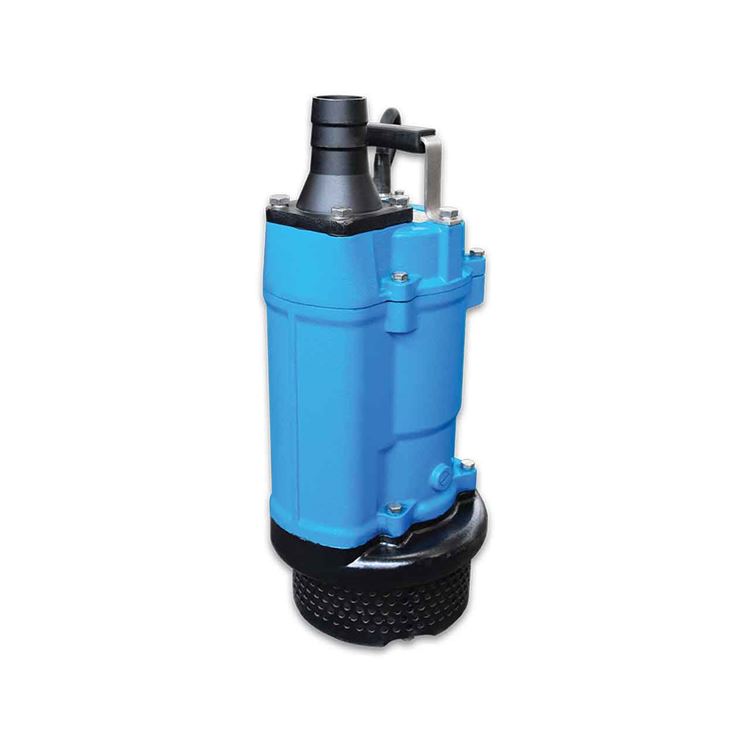

The Barmesa 2KTM303 is a 3.0 HP, 3-Phase, 230V submersible dewatering pump. Efficiently draining water from flooded areas, construction sites, and underground spaces , these pumps are common in industrial, municipal, and commercial settings to maintain dry and safe environments by preventing water damage and facilitating drainage. They are crucial for de 2" vertical for hose coupling. Cast iron ASTM 48 class 30.
Submersible Dewatering — High Volume, Fast Deployment
Designed for high-volume water removal in construction sites, mines, excavations, and flood control. Semi-open high-chrome alloy impeller passes small solids and debris that would block standard centrifugal impellers.
High-Chrome Alloy Impeller — Abrasion Resistant
High-chrome alloy (HCr) impeller resists abrasive wear from sand, grit, and suspended solids in dirty water dewatering. HCr impellers last significantly longer than standard cast iron in abrasive conditions.
Double Mechanical Seal — Extended Service Life
Double mechanical seal in an oil-filled chamber protects both seal faces from abrasive fluid contamination. SiC-SiC and carbon-SiC seal face combinations provide superior wear resistance in dirty water applications.
IP68 Motor Protection — Continuous Submersible Duty
IP68-rated motor protection provides complete protection against water ingress for continuous submerged operation. Class F insulation handles elevated winding temperatures from demanding duty cycles.
Stainless Steel Shaft — Corrosion Resistance
420 AISI stainless steel shaft resists corrosion at the seal interface — the most common failure point on dewatering pumps operating in aggressive soil drainage and construction site environments.
Barmesa Pumps — Miami, Florida
Barmesa Pumps is a leading North American pump manufacturer based in Miami, Florida — serving industrial, municipal, and commercial markets with a full line of submersible and centrifugal pumps.
| Model Number | 2KTM303 |
| Series | 2KTM303 / 304 series |
| Category | Submersible Dewatering Pumps |
| Horsepower | 3.0 HP |
| Phase | 3-Phase |
| Voltage | 230V |
| Speed | 3450 RPM |
| Discharge | 2" vertical for hose coupling. Cast iron ASTM 48 class 30. |
| Max Liquid Temperature | 104 °F (40 °C) UPPER COVER Cast iron ASTM A-48 class 30 PUMP BODY Cast iron ASTM A-48 class 30 |
| Motor | Three phase induction motor, 230 & 460 volts, 60 Hz, 3450 RPM. Insulation class F and IP68 protection class. |
| Impeller | Design: semi-open Material: high chrome alloy INLET PLATE Ductile iron |
| Shaft | 420 AISI stainless steel |
| Mechanical Seal | Design: double mechanical, oil filled chamber. Material: SiC-SiC / carbon-SiC. Stainless steel hardware. |
| Motor Housing | Cast iron ASTM A-48 class 30 |
| O-Rings | A- Nitrile rubber (NBR) |
| Hardware | 304 series stainless steel |
| Paint / Finish | Air dry enamel, water based. |
| Cord Entry | 50 ft of neoprene cord, sealed against moisture. |
| Model | Part# | HP | Volts | Phase | Amps | Weight |
|---|---|---|---|---|---|---|
| 2KTM303 | 70090234 | 3 HP | 230V | 3-Ph | 3450A | 86 lbs |
| 2KTM304 | 70090235 | 3 HP | 460V | 3-Ph | 3450A | 86 lbs |
★ Highlighted = this product. All models share casing dimensions and spare parts.
- Never use this pump to handle explosive liquids.
- This pump is not approved to be used in swimming pools, recreational installations or any application where
- Testing is performed with water specific gravity of 1.0 @ 68 °F (20 °C); other fluids may vary performance.
| Fluid compatibility | For use with clean water and non-explosive liquids compatible with pump materials. Never use with explosive, flammable, or corrosive fluids unless specifically rated. |
| Swimming pools | Not approved for use in swimming pools, recreational installations, or any application where human contact is common. |
| Temperature | Do not exceed maximum liquid temperature rating (104 °F (40 °C) UPPER COVER Cast iron ASTM A-48 class 30 PUMP BODY Cast iron ASTM A-48 class 30). Exceeding limits causes seal and motor damage. |
| Electrical | Requires properly sized, grounded branch circuit with correctly rated motor starter and thermal overload protection. |
