Description

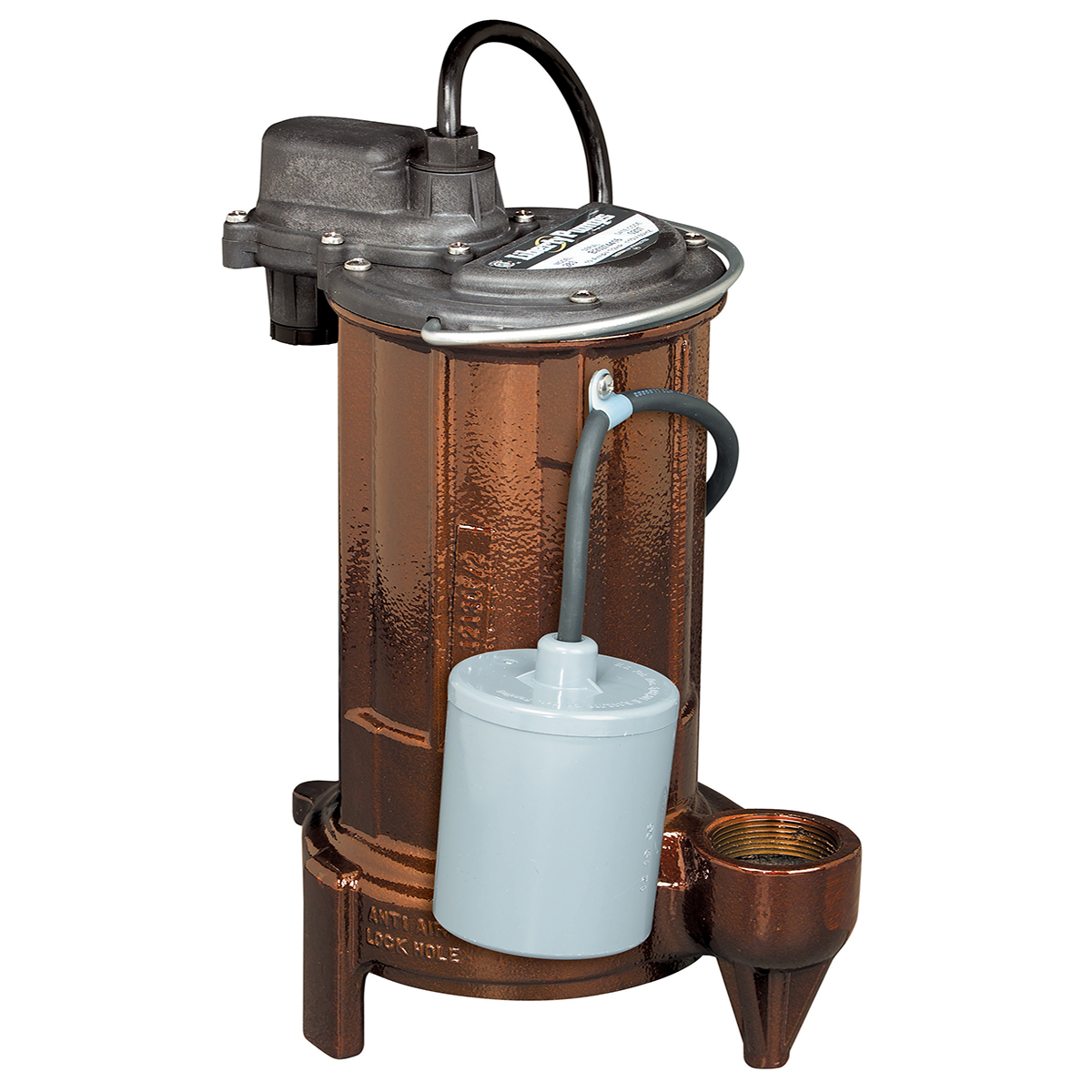

The Liberty Pumps 291HV-5 is a 3/4 HP, 230V, 1-Phase effluent pump 290-series. 3/4 hp 1-1/2" Discharge 3/4" Solids handling
Submersible Design — Continuous Basement Protection
Submersible construction allows the pump to operate fully submerged in the sump pit — the correct installation for reliable, automatic basement drainage protection. The motor is oil-filled for heat dissipation and continuous duty rating.
Thermal Overload Protection — Auto Reset
Integral thermal overload protection in the motor windings automatically shuts the pump down if the motor overheats and resets automatically once cooled. Prevents motor burnout from blocked discharge or extended run-dry conditions.
Vortex Impeller — Solids Handling Without Clogging
Vortex-style impeller passes solids without direct impeller contact — the fluid vortex carries solids through without lodging them in the impeller passages. Critical for sump applications where the pit accumulates debris, sand, and particulates.
Quick-Connect Power Cord
Quick-connect cord design allows replacement of the power cord without breaking the motor seal — the most common cause of submersible pump failure is a damaged cord. Field-replaceable cord extends pump service life significantly.
Multiple Switch Styles Available
Available with no switch (manual), wide-angle float, vertical magnetic float, and VMF switch configurations — select the switch type matched to your sump geometry, pit diameter, and automatic operation requirements.
Liberty Pumps — Bergen, New York
Manufactured in Bergen, New York — Liberty Pumps has produced submersible sump pumps in the USA since 1965. Over 50 years of residential and commercial pump experience, with a 3-year limited warranty on most products.
| Model Number | 291HV-5 |
| Series | 290-Series |
| Category | Sump Pumps |
| Horsepower | 3/4 HP |
| Voltage | 230V |
| Phase | 1-Phase |
| Discharge Size | 1-1/2"" |
| Solids Handling | 3/4" |
| Model | HP | Volts | Phase | Amps | Switch | Weight |
|---|---|---|---|---|---|---|
| 290 | 3/4 HP | 115V | 1-Ph | 10.4A | Manual | 30 lbs |
| 291 | 3/4 HP | 115V | 1-Ph | 10.4A | Wide-Angle | 31 lbs |
| 293 | 3/4 HP | 115V | 1-Ph | 10.4A | Wide-Angle | 32 lbs |
| 297 | 3/4 HP | 115V | 1-Ph | 10.4A | Vertical | 31 lbs |
All models in this series share the same pump end and spare parts.
| Electrical | Requires a properly grounded GFCI receptacle meeting UL 943 requirements. Do not use an extension cord. |
| Fluid compatibility | For use with clean water and gray water only. Not for use with chemicals, flammable fluids, grease, hydrocarbons, sand, cement, or abrasives. |
| Warranty | 3-year Liberty Pumps limited warranty from date of purchase. Warranty voids for use with prohibited substances or field disassembly beyond normal maintenance. |
