Liberty 2472LSGX202-48, 2400 Series Two Stage Simplex Grinder Basin Package w/ LSGX202M Pump, 2 HP, 208-230 Volts, 1-1/4" Discharge, (24" x 72") Basin, 48" Discharge Depth (from Top of Basin)

This item ships free!
LibertySKU: 2472LSGX202-48

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

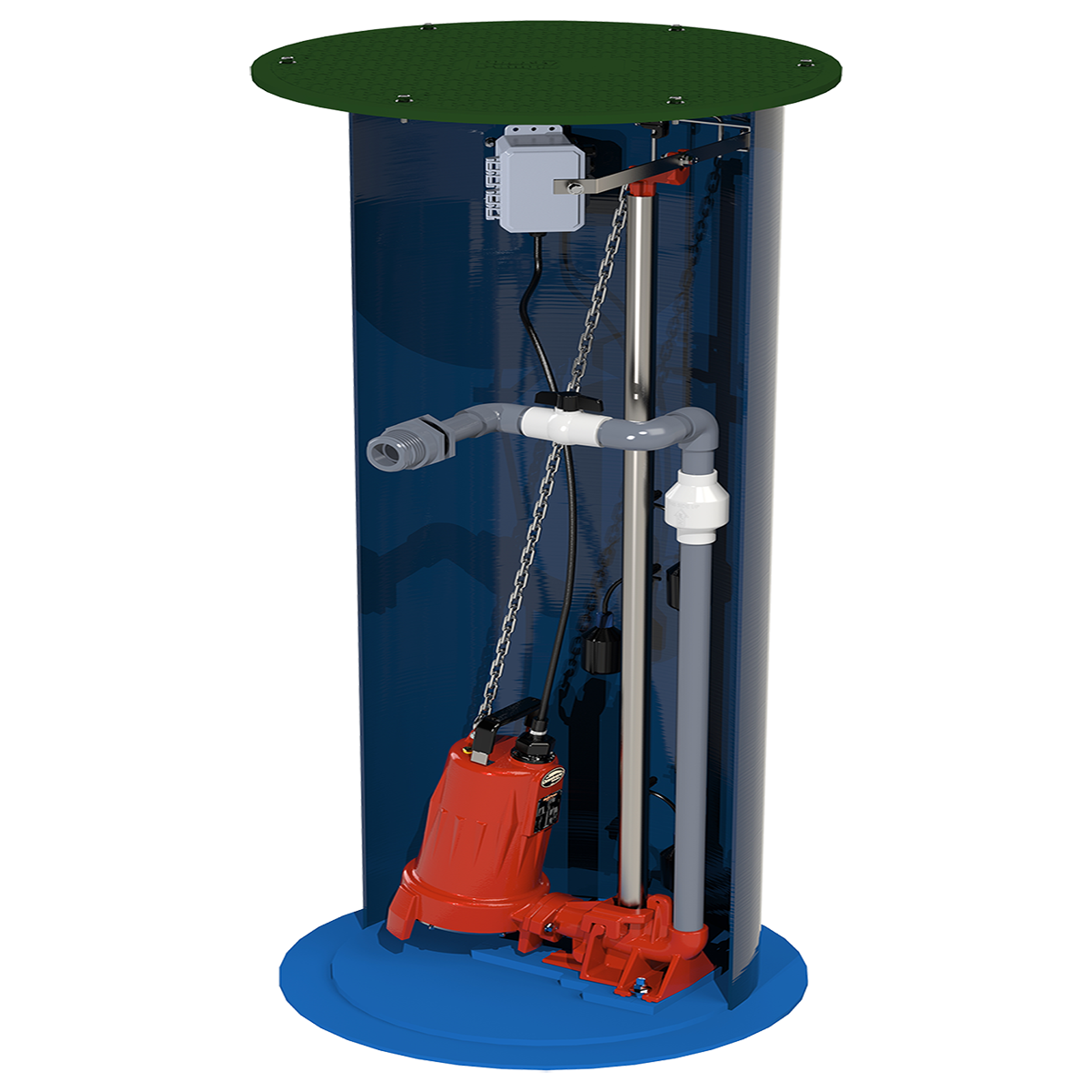

FEATURES Liberty Pumps 2472LSGX202-48 The 2472 series is a simplex grinder package for residential and commercial applications. Arriving entirely factory assembled, this simplex grinder package features the LSGX-Series, 2-Stage, 2 HP Omnivore grinder pump. All internal brackets, floats, guide-rail base and discharge piping are pre-installed at the factory, saving hours of labor on the job site. The complete assembled grinder package includes 24" x 72" basin, grinder pump, QuickTree float assembly, GR20 guide rails and SX-Series control panel. Features: 48" discharge depth from top of the tank to center of the discharge Factory assembled simplex grinder package with 24" x 72" fiberglass basin & Omnivore grinder pump 2 HP heavy-duty oil filled and thermally protected motor, 208/230v, 1 phase, 1-1/4" discharge GR20 guide rail assembly New V-Slice Cutter technology: Recessed cutter bolt eliminates wadding & exclusion clean out slots clear debris from under the cutter Provides superior cutting with improved shredding performance over radial cutters V-pattern cutter provides up to 108 alternate cuts per revolution Standard panel SXH24=3 NEMA 4X junction box for electrical connections pre-mounted Stainless steel chain for pump lift-out included Includes Liberty's standard three year limited warranty

Motor Curves
