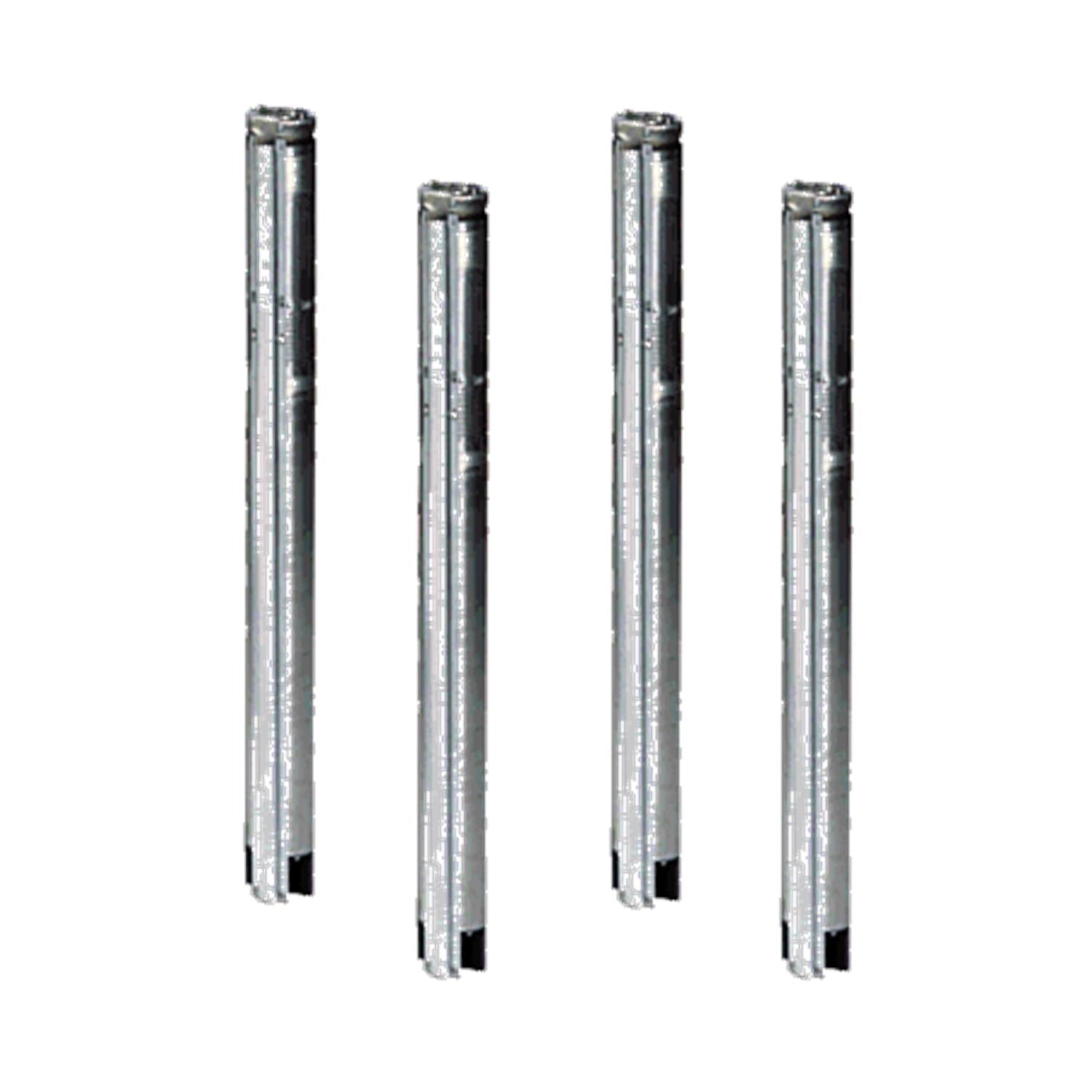

![Grundfos 96160197 - 22 SQE05-80]()
![Grundfos 96160197 - 22 SQE05-80]()
![Grundfos 96160197 - 22 SQE05-80]()
![Grundfos 96160197 - 22 SQE05-80]()
Description
Grundfos 96160197 - 22 SQE05-80 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
Maximum operating pressure
217.56 psi
Power factor 1
1
Rated voltage
1 x 200-240 V
Thermal protec
internal
Power input - P1
1 kW
Pump outlet
1 1/2"NPT
Liquid temperature range
32 .. 95 °F
Insulation class (IEC 85)
F
Built-in motor protection
Y
Net weight
10.6 lb
Rated speed
10700 rpm
Gross weight
12.1 lb
Rated power - P2
0.939 HP
Enclosure class (IEC 34-5)
IP68
Power (P2) required by pump
1.23 HP
Rated current
5.2 A
Service factor
1.85
Length of cable
4.92 ft
Sales region
Namreg
Motor type
MSE3
Minimum borehole diameter
2.99 in
Stages
2
Approvals
cULus
Rated flow
22 US gpm
Model
B
Diameter
2.99 in
Motor
Stainless steel
Return valve
Product name:22 SQE05-80
Rated head
75.46 ft
Type
MSE3
Curve tolerance
ISO9906:2012 3B
Valve
pump with built-in non-return valve
Impeller
Composite
Pump
1.23 HP
Motor Curves
