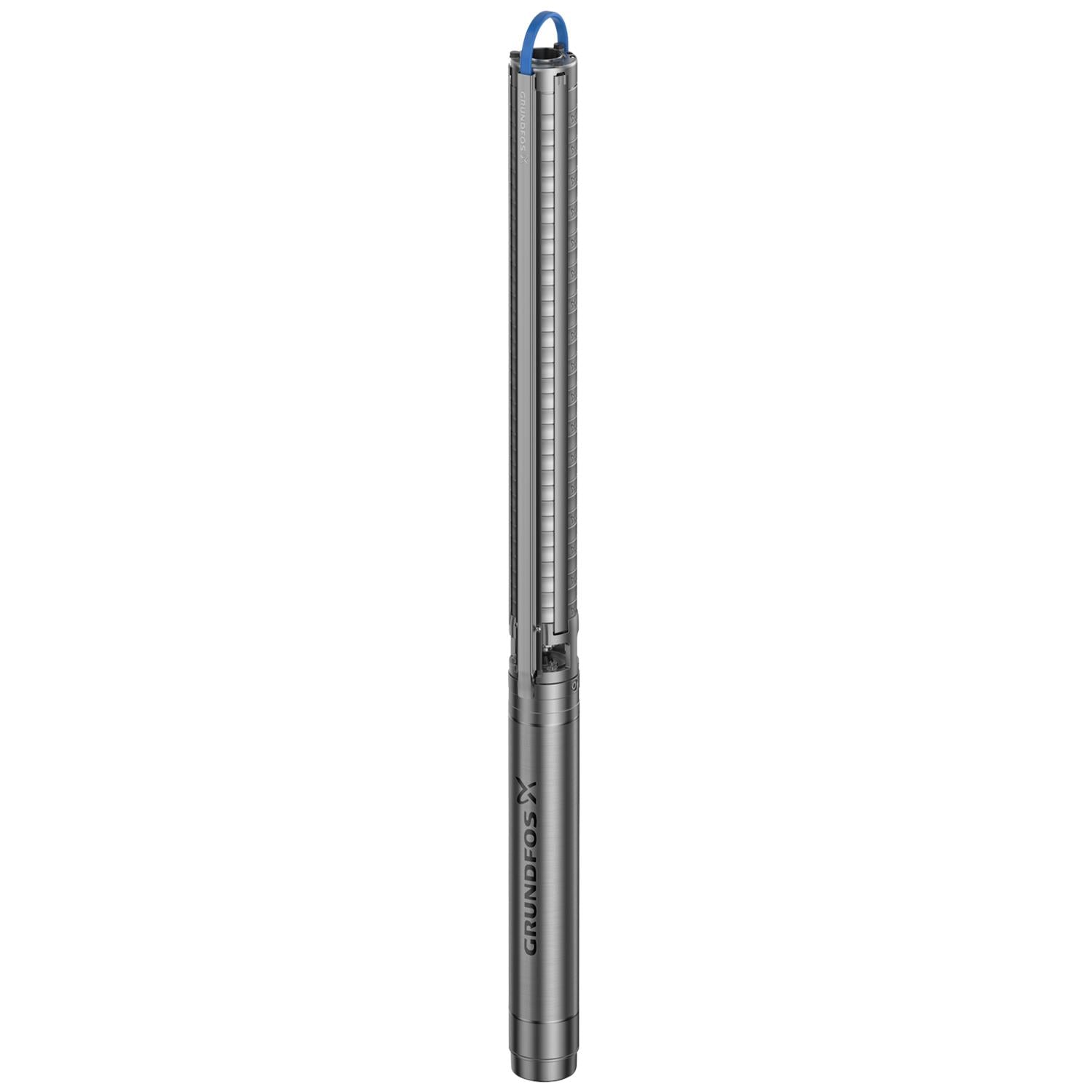

Grundfos 10014518 - 16S20-18
Grundfos 10014518 - 16S20-18
Grundfos 10014518 - 16S20-18
Grundfos 10014518 - 16S20-18
Grundfos 10014518 - 16S20-18
Grundfos 10014518 - 16S20-18

Grundfos 10014518 - 16S20-18

GRUNDFOSSKU: 10014518
Price:
$3,030.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 10014518 - 16S20-18 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

Maximum operating pressure 870.23 psi
Power factor 1 0.86
Type of connection NPT(F)
Rated voltage 1 x 230 V
Starting current 4.2
Liquid temperature range 5 .. 104 °F
Insulation class (IEC 85) F
Built-in motor protection NONE
Net weight 35.9 lb
Rated speed 3450 rpm
Gross weight 39.9 lb
Rated power - P2 2 HP
Size of connection 1 1/4 inch
Maximum outlet pressure 242.21 psi
Enclosure class (IEC 34-5) IP58
Power (P2) required by pump 2 HP
Shaft Product name:16S20-18
Rated current 13.2 A
Cable type ROUND SINGLE
Service factor 1.25
Length of cable 8.2 ft
Minimum efficiency index, MEI ≥ 0.7
Power cable type ROUND SINGLE
Motor type MS4000
Motor diameter 4 inch
Minimum borehole diameter 4.13 in
Motor flange design Grundfos
Pump speed on which pump data are based 3450 rpm
Stages 18
Approvals CULDWUS,CCSAUS
Rated flow 17.6 US gpm
Approvals for motor CE,GOST2,CSACE,GOST2,CSA
Model A
Diameter 4.13 in
Motor Stainless steel
Approvals for drinking water PROP65
Return valve YES
Rated head 367.5 ft
Type ROUND SINGLE
Curve tolerance ISO9906:2012 3B
Impellers NONE
Valve YES
Connection 1 1/4 inch
Impeller Stainless steel
Number of reduced-diameter impellers NONE
Pump 2 HP

Motor Curves

Dimensional Drawing

DWiring Diagram
