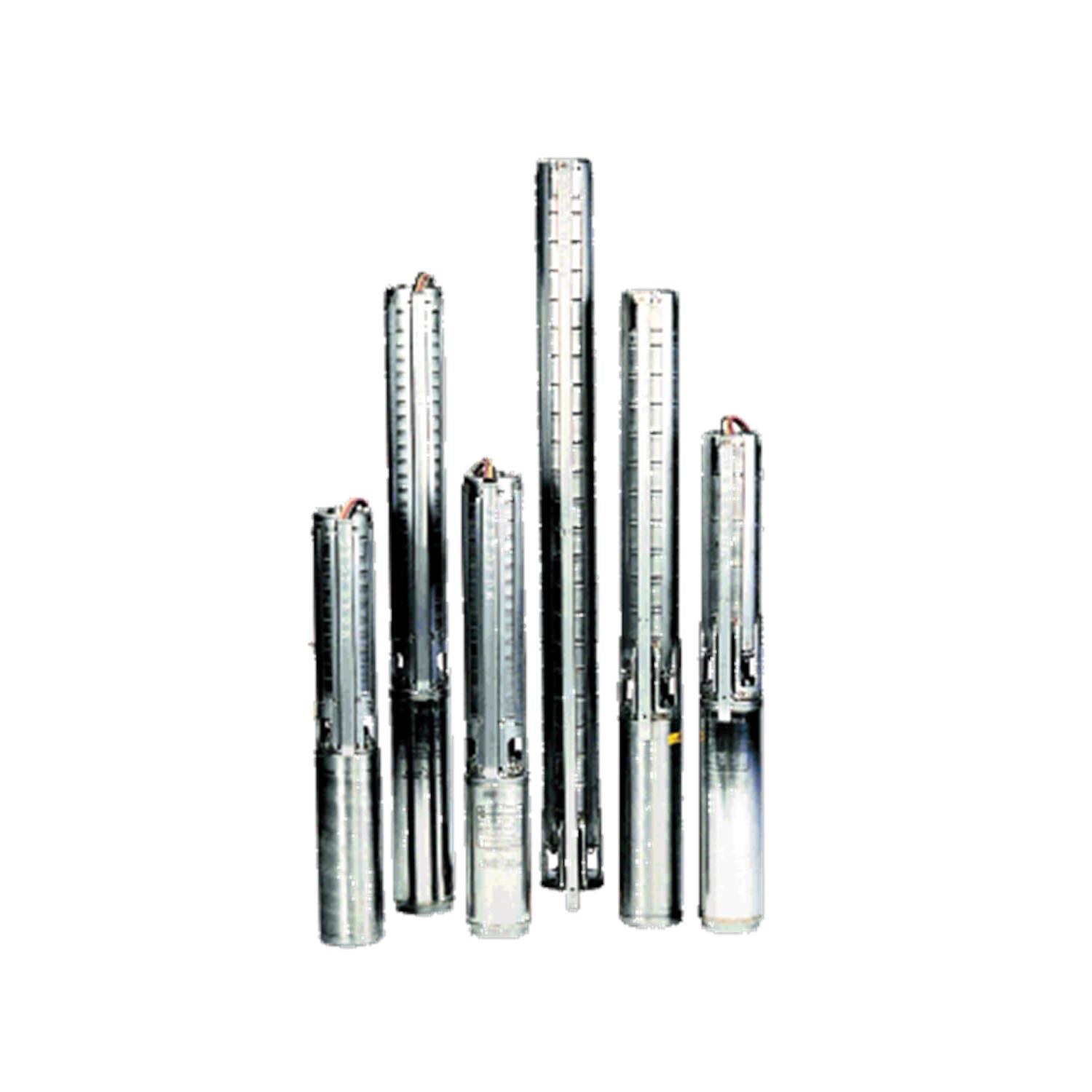

Image shown may not be actual product
Grundfos 10313675 - 16S100-75
Grundfos 10313675 - 16S100-75
Grundfos 10313675 - 16S100-75
Grundfos 10313675 - 16S100-75
Grundfos 10313675 - 16S100-75
Grundfos 10313675 - 16S100-75

Grundfos 10313675 - 16S100-75

GRUNDFOSSKU: 10313675
Price:
$15,309.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

16S100-75 | Multi-stage submersible pump for raw water supply, groundwater lowering and pressure boosting. Thepump is suitable for pumping clean, thin, non-agressiveliquids without solid particles or fibers. horizontal and vertical installation. The pump is fitted with a built-in non-return valve. The motor is a 3-phase motor of the cannedtype with a sand shield, liquid-lubricated bearingsand pressure-equalizing diaphragm.

Maximum operating pressure 870.23 psi
Power factor 1 0.84-0.83-0.80
Type of connection NPT(M)
Rated voltage 3 x 440-460-480 V
Thermal protec external
KVA code G
Starting current 410-440-470 %
Liquid temperature range 5 .. 104 °F
Insulation class (IEC 85) F
Built-in motor protection NONE
Net weight 190.0 lb
Rated speed 3450-3470-3480 rpm
Gross weight 257.0 lb
Rated power - P2 10 HP
Size of connection 1 1/4 inch
Maximum outlet pressure 1009.46 psi
Enclosure class (IEC 34-5) IP68
Power (P2) required by pump 10 HP
Shaft Product name:16S100-75
Rated current 17.4-16.8-16.6 A
Cable type ROUND SINGLE
Service factor 1.15
Length of cable 9.84 ft
Windings Enamelled
Minimum efficiency index, MEI ≥ 0.7
Power cable type ROUND SINGLE
Motor type MS6000
Motor diameter 6 inch
Minimum borehole diameter 5.71 in
Motor flange design Grundfos
Pump speed on which pump data are based 3450 rpm
Stages 75
Shaft seal for motor SIC/SICNBR
Approvals CULDWUS,CCSAUS
Rated flow 17.6 US gpm
Model A
Version T40
Diameter 5.71 in
Motor Stainless steel
Approvals for drinking water PROP65
Return valve YES
Rated head 1601 ft
Type ROUND SINGLE
Curve tolerance ISO9906:2012 3B
Motor version T40
Impellers NONE
Valve YES
Connection 1 1/4 inch
Impeller Stainless steel
Number of reduced-diameter impellers NONE
Pump 10 HP
