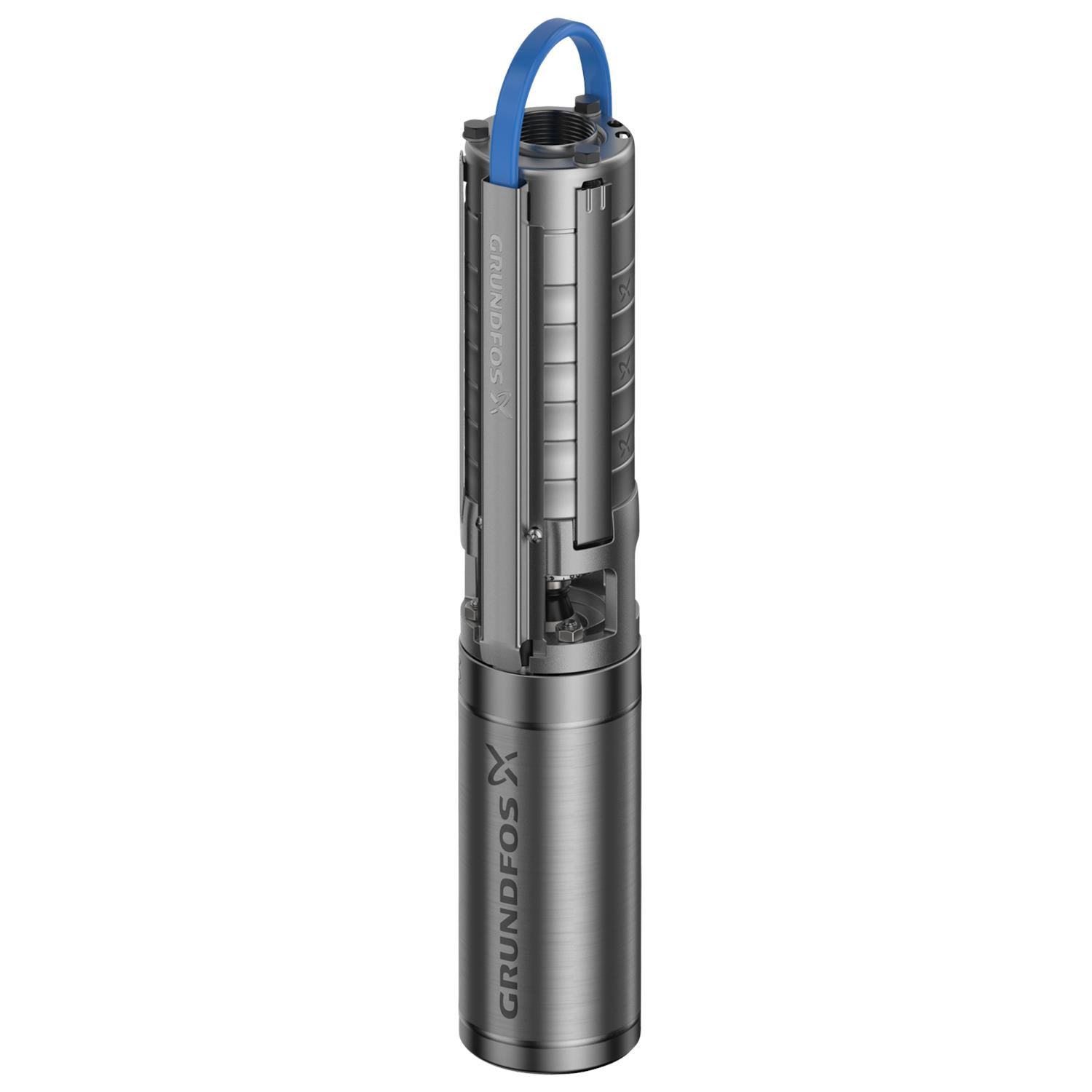

![Grundfos 10154510 - 16S10-10]()
![Grundfos 10154510 - 16S10-10]()
![Grundfos 10154510 - 16S10-10]()
![Grundfos 10154510 - 16S10-10]()
![Grundfos 10154510 - 16S10-10]()
![Grundfos 10154510 - 16S10-10]()
Description
Grundfos 10154510 - 16S10-10 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
Maximum operating pressure
217.56 psi
Power factor 1
0.82
Type of connection
NPT(F)
Rated voltage
1 x 230 V
Thermal protec
internal
KVA code
K
Starting current
4.3
Liquid temperature range
5 .. 104 °F
Insulation class (IEC 85)
B
Built-in motor protection
CONTACT
Net weight
28.0 lb
Rated speed
3450 rpm
Axial load max
772 lb
Gross weight
31.1 lb
Rated power - P2
1 HP
Size of connection
1 1/4 inch
Maximum outlet pressure
133.43 psi
Enclosure class (IEC 34-5)
IP68
Power (P2) required by pump
1 HP
Shaft
Product name:16S10-10
Rated current
9.8 A
Cable type
ROUND SINGLE
Service factor
1.4
Length of cable
3.94 ft
Windings
Enamelled
Minimum efficiency index, MEI ≥
0.7
Power cable type
ROUND SINGLE
Motor type
MS402
Motor diameter
4 inch
Minimum borehole diameter
4.13 in
Motor flange design
Grundfos
Pump speed on which pump data are based
3450 rpm
Stages
10
Shaft seal for motor
LIPSEAL
Approvals
CULDWUS,CCSAUS
Rated flow
17.6 US gpm
Model
A
Version
T40
Diameter
4.13 in
Motor
CSIR
Approvals for drinking water
PROP65
Return valve
YES
Rated head
203.4 ft
Type
ROUND SINGLE
Curve tolerance
ISO9906:2012 3B
Motor version
T40
Impellers
NONE
Valve
YES
Connection
1 1/4 inch
Impeller
Stainless steel
Number of reduced-diameter impellers
NONE
Pump
1 HP
