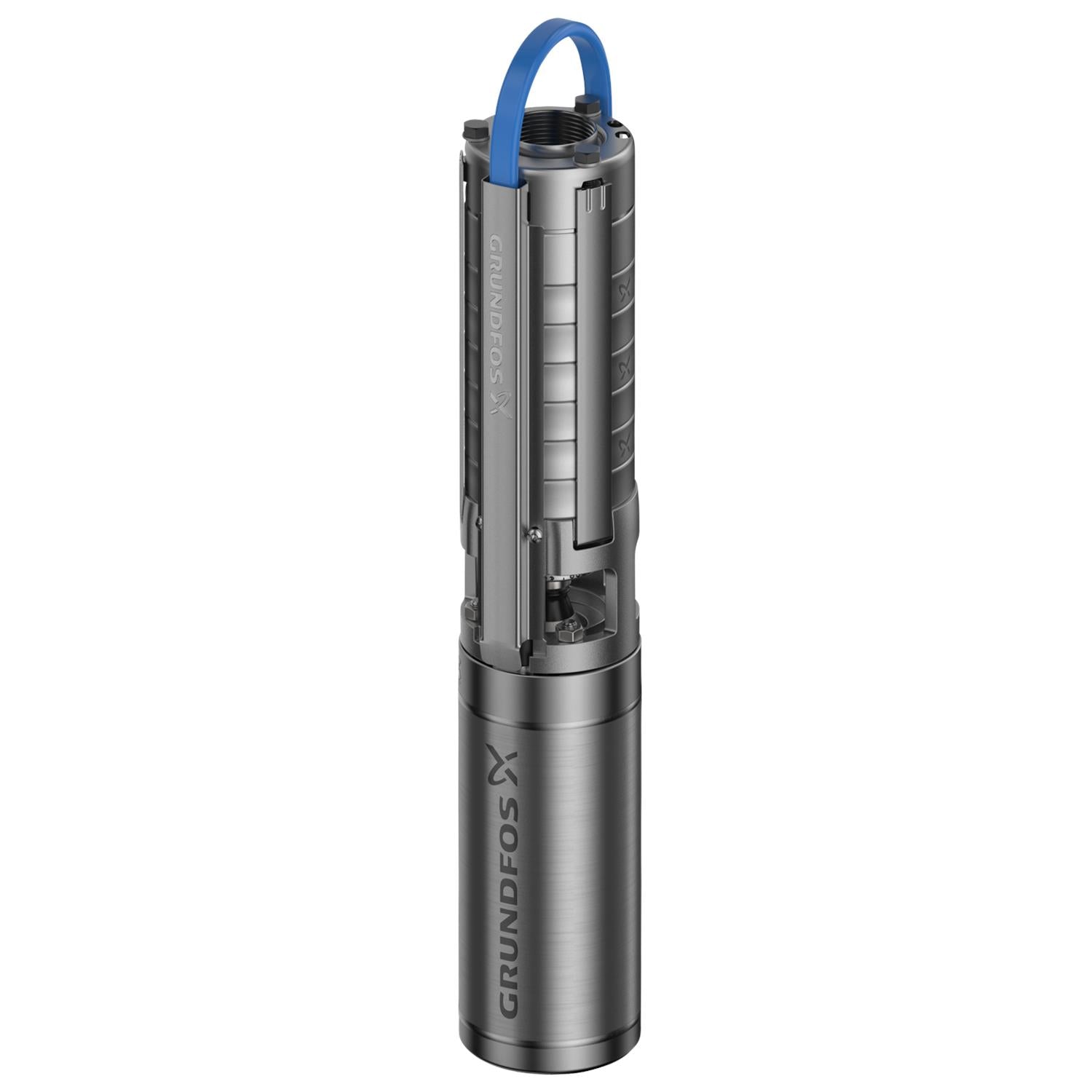

Grundfos 10159508 - 16S07-8
Grundfos 10159508 - 16S07-8
Grundfos 10159508 - 16S07-8
Grundfos 10159508 - 16S07-8
Grundfos 10159508 - 16S07-8
Grundfos 10159508 - 16S07-8

Grundfos 10159508 - 16S07-8

GRUNDFOSSKU: 10159508
Price:
$1,978.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

16S07-8 | Multi-stage submersible pump for raw water supply, groundwater lowering and pressure boosting. Thepump is suitable for pumping clean, thin, non-agressiveliquids without solid particles or fibers. horizontal and vertical installation. The pump is fitted with a built-in non-return valve. The motor is a 1-phase motor of the cannedtype with a sand shield, liquid-lubricated bearingsand pressure-equalizing diaphragm.

Maximum operating pressure 217.56 psi
Power factor 1 0.75
Type of connection NPT(F)
Rated voltage 1 x 230 V
Thermal protec internal
KVA code N
Starting current 6.1
Liquid temperature range 5 .. 104 °F
Insulation class (IEC 85) B
Built-in motor protection CONTACT
Net weight 24.3 lb
Rated speed 3450 rpm
Axial load max 772 lb
Gross weight 26.9 lb
Rated power - P2 0.75 HP
Size of connection 1 1/4 inch
Enclosure class (IEC 34-5) IP68
Power (P2) required by pump 0.75 HP
Shaft Product name:16S07-8
Rated current 8.4 A
Cable type ROUND SINGLE
Service factor 1.5
Length of cable 3.94 ft
Windings Enamelled
Minimum efficiency index, MEI ≥ 0.7
Power cable type ROUND SINGLE
Motor type MS402
Motor diameter 4 inch
Minimum borehole diameter 4.13 in
Motor flange design Grundfos
Pump speed on which pump data are based 3450 rpm
Stages 8
Shaft seal for motor LIPSEAL
Approvals CULDWUS,CCSAUS
Rated flow 17.6 US gpm
Model A
Version T40
Diameter 4.13 in
Motor RSIR
Approvals for drinking water PROP65
Return valve YES
Rated head 160.8 ft
Type ROUND SINGLE
Curve tolerance ISO9906:2012 3B
Motor version T40
Impellers NONE
Valve YES
Connection 1 1/4 inch
Impeller Stainless steel
Number of reduced-diameter impellers NONE
Pump 0.75 HP

Motor Curves

Dimensional Drawing

DWiring Diagram
