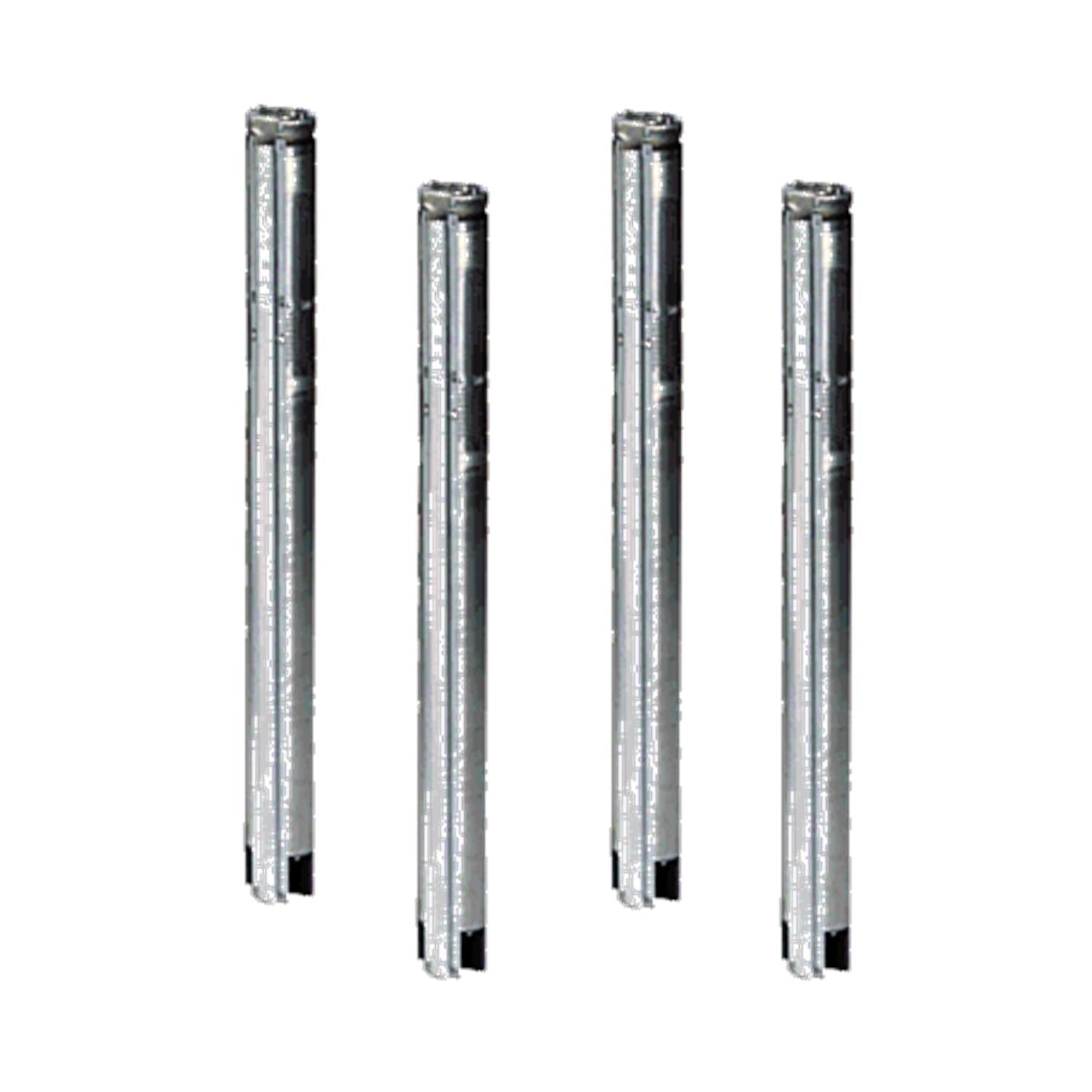

![Grundfos 96160189 - 15 SQE05-70]()
![Grundfos 96160189 - 15 SQE05-70]()
![Grundfos 96160189 - 15 SQE05-70]()
![Grundfos 96160189 - 15 SQE05-70]()
Description
15 SQE05-70 | 3" multi-stage, submersible pump designed fordomestic water supply, liquid transfer in tanks, irrigation and environmental applications. Thepump has "floating" impellers, each with its owntungsten carbide/ceramic bearing. The pump features soft starting and protectionagainst dry-running, upthrust, overvoltage, undervoltage, overload and overtemperature. The motor is a one-phase motor of the permanentmagnet rotor type ensuring optimum efficiencywithin a wide load range. The motor is fitted with a replaceablecable plug.
Maximum operating pressure
217.56 psi
Power factor 1
1
Rated voltage
1 x 200-240 V
Thermal protec
internal
Power input - P1
1 kW
Pump outlet
1 1/4"NPT
Liquid temperature range
32 .. 95 °F
Insulation class (IEC 85)
F
Built-in motor protection
Y
Net weight
10.6 lb
Rated speed
10700 rpm
Gross weight
11.9 lb
Rated power - P2
0.939 HP
Enclosure class (IEC 34-5)
IP68
Power (P2) required by pump
0.939 HP
Rated current
5.2 A
Service factor
1.85
Length of cable
4.92 ft
Sales region
Namreg
Motor type
MSE3
Minimum borehole diameter
2.99 in
Stages
2
Approvals
cULus
Rated flow
13.2 US gpm
Model
B
Diameter
2.99 in
Motor
Stainless steel
Return valve
Product name:15 SQE05-70
Rated head
85.31 ft
Type
MSE3
Curve tolerance
ISO9906:2012 3B
Valve
pump with built-in non-return valve
Impeller
Composite
Pump
0.939 HP
Motor Curves
