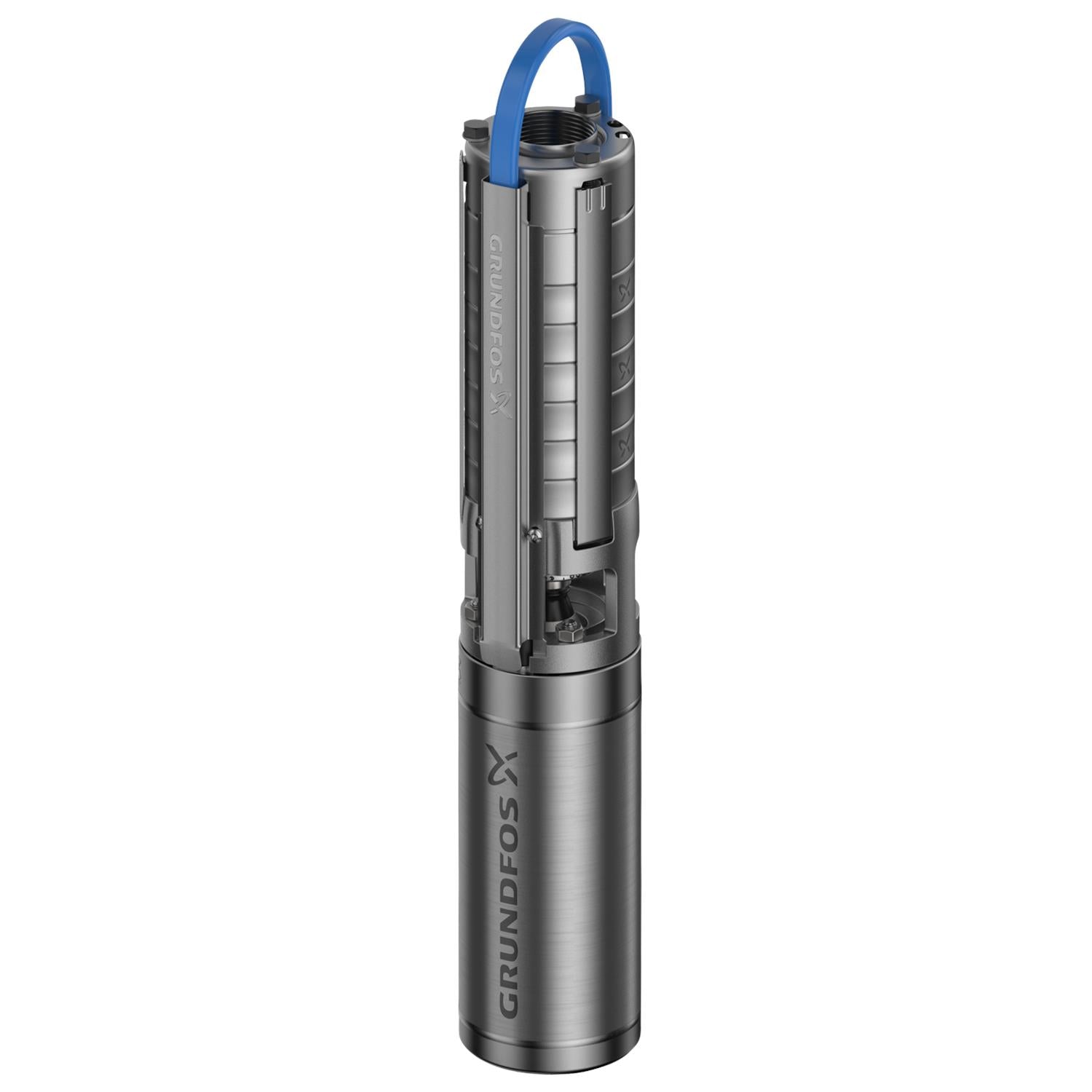

![Grundfos 91595065 - 10S05-6]()
![Grundfos 91595065 - 10S05-6]()
![Grundfos 91595065 - 10S05-6]()
![Grundfos 91595065 - 10S05-6]()
Description
10S05-6 | Multi-stage submersible pump for raw water supply, groundwater lowering and pressure boosting. Thepump is suitable for pumping clean, thin, non-agressiveliquids without solid particles or fibers. horizontal and vertical installation. The pump is fitted with a built-in non-return valve. The motor is a 1-phase motor of the cannedtype with a sand shield, liquid-lubricated bearingsand pressure-equalizing diaphragm.
Maximum operating pressure
217.56 psi
Power factor 1
0.76
Type of connection
NPT(F)
Rated voltage
1 x 230 V
Thermal protec
internal
KVA code
R
Starting current
6.2
Liquid temperature range
5 .. 104 °F
Insulation class (IEC 85)
B
Built-in motor protection
CONTACT
Net weight
20.7 lb
Rated speed
3450 rpm
Axial load max
772 lb
Gross weight
22.9 lb
Rated power - P2
0.5 HP
Size of connection
1 1/4 inch
Maximum outlet pressure
76.87 psi
Enclosure class (IEC 34-5)
IP68
Power (P2) required by pump
0.5 HP
Shaft
Product name:10S05-6
Rated current
0.25
Cable type
ROUND SINGLE
Service factor
1.6
Length of cable
3.94 ft
Windings
Enamelled
Minimum efficiency index, MEI ≥
0.7
Power cable type
ROUND SINGLE
Motor type
MS402
Motor diameter
4 inch
Minimum borehole diameter
4.13 in
Motor flange design
Grundfos
Pump speed on which pump data are based
3450 rpm
Stages
6
Shaft seal for motor
LIPSEAL
Approvals
CULDWUS,CCSAUS
Rated flow
8.81 US gpm
Model
A
Version
T40
Diameter
4.13 in
Motor
RSIR
Approvals for drinking water
PROP65
Return valve
YES
Rated head
114.8 ft
Type
ROUND SINGLE
Curve tolerance
ISO9906:2012 3B
Motor version
T40
Impellers
NONE
Valve
YES
Connection
1 1/4 inch
Impeller
Stainless steel
Number of reduced-diameter impellers
NONE
Pump
0.5 HP
