Description

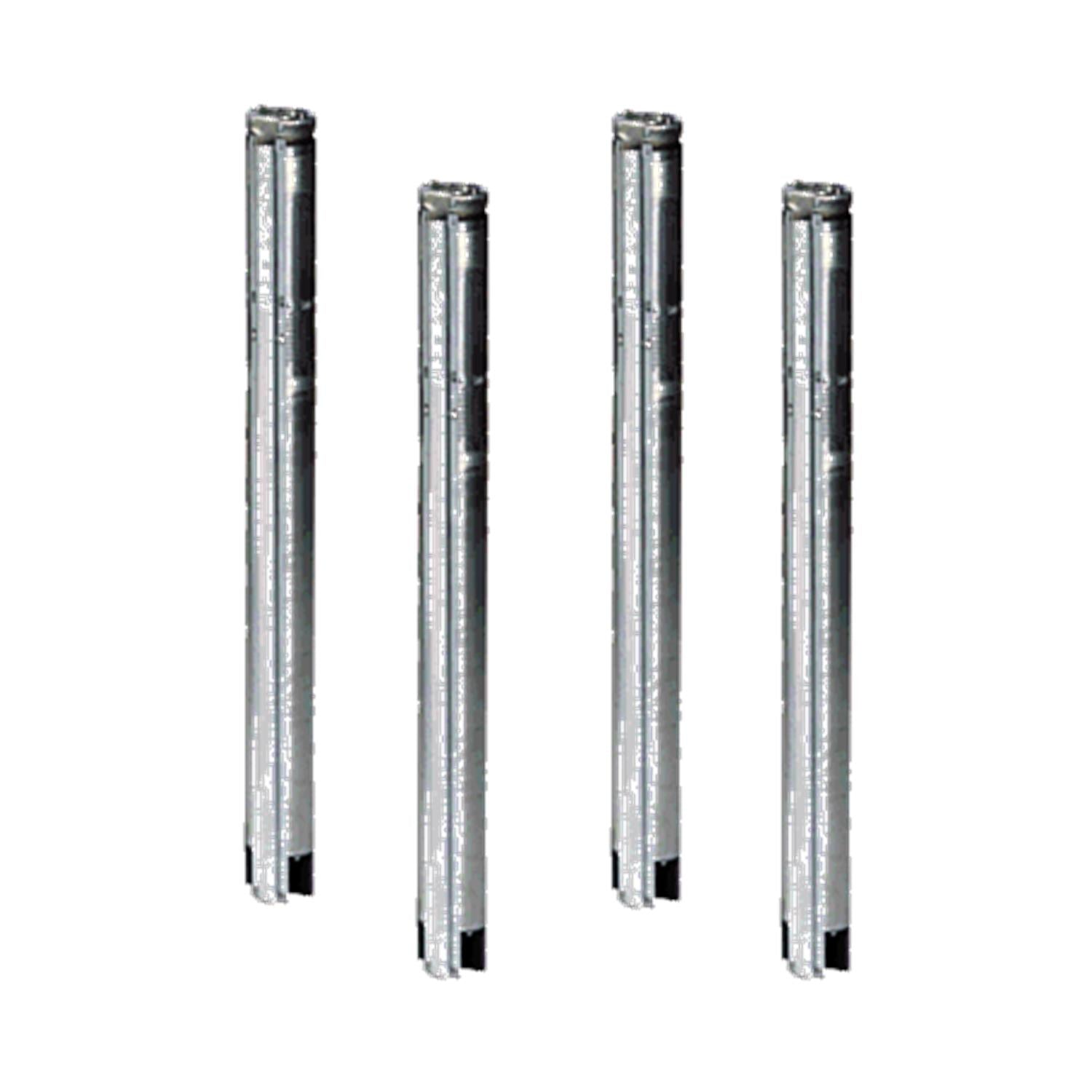

The Grundfos 96160167 (10 SQ05-160) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 8.81US gpm at 177.2ft. Rated 100-115V, 1-Phase, 60 Hz. Applications include Residential groundwater intake, Residential rainwater harvesting, Municipal wells.
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
| Model Number | 96160167 |
| Product Series | ACC |
| Series Description | Grundfos Accessory / Spare Part / Control |
| Power | 0.939HP |
| Voltage | 100-115V |
| Phase | 1-Phase |
| Frequency | 60 Hz |
| Pump Speed | 10700rpm |
| Full Load Current | 12A |
| Motor Type | MS3 |
| Motor Protection | Y |
| Insulation Class | F |
| Protection Class (IP) | IP68 |
| Nominal Flow | 8.81US gpm |
| Nominal Head | 177.2ft |
| Max Operating Pressure | 217.56psi |
| Max Fluid Temperature | 95°F |
| Outlet Connection | 1 1/4"NPT |
| Impeller Material | Composite |
| Approvals / Certifications | cULus |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 100-115V, 1-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 95°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- Approvals
- cULus
- Built-in motor protection
- Y
- Curve tolerance
- ISO9906:2012 3B
- Diameter
- 2.99 in
- Enclosure class (IEC 34-5)
- IP68
- Frequency
- 60 Hz
- Gross weight
- 12.1 lb
- Impeller
- Composite
- Insulation
- F
- Insulation class (IEC 85)
- F
- IP Class
- IP68
- Length of cable
- 4.92 ft
- Liquid max temp
- 95°F
- Liquid temperature range
- 32 .. 95 °F
- Maximum operating pressure
- 217.56 psi
- Minimum borehole diameter
- 2.99 in
- Model
- B
- Motor
- Stainless steel
- Motor type
- MS3
- n rpm
- F
- Net weight
- 10.6 lb
- P2 kW
- 0.939 HP
- Phase
- 1
- Power (P2) required by pump
- 1.34 HP
- Power factor 1
- 1
- Power input - P1
- 1.09 kW
- Pump
- 1.34 HP
- Pump outlet
- 1 1/4"NPT
- Rated current
- 0
- Rated flow
- 8.81 US gpm
- Rated head
- 177.2 ft
- Rated power - P2
- 0.939 HP
- Rated speed
- 10700 rpm
- Rated voltage
- 1 x 100-115 V
- Return valve
- Product name:10 SQ05-160
- Sales region
- Namreg
- Service factor
- 1.85
- Stages
- 3
- Start. 1 method
- direct-on-line
- Thermal protec
- internal
- Type
- MS3
- Valve
- pump with built-in non-return valve
