Description

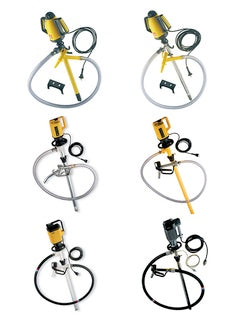

The Lutz 0205-411 is a Drum Pump Set with a Niro (Stainless Steel) pump tube, electric motor-driven, 230V / 50Hz. Delivers up to 95 l/min at up to 14 mWS head. Sealless design — no media-contacting shaft seal, no seal wear, no leak risk at the seal interface. Suitable for: acetone, formic acid, Butylacetat, acetic acid, Nikotin, Styrol, toluene, Äththylacetat.
Direct Drum Transfer — No Decanting, No Spills
Lutz drum pump sets transfer liquid directly from 55-gallon drums and IBCs without tilting, pouring, or decanting. The pump tube submerges to the drum bottom — maximizing product recovery and eliminating manual handling injuries associated with drum tipping.
Sealless Design — Zero Shaft Seal Leakage
The sealless design eliminates the mechanical shaft seal entirely. No rotating seal interface means no seal wear, no seal leakage, and no seal degradation from chemical attack — the leading cause of drum pump failure in aggressive chemical service.
Chemical-Resistant Materials Throughout
Every component in the fluid path — tube, impeller, bearings, and fittings — is manufactured from materials matched to your specific chemical. Polypropylene for acids and alkalis. PVDF for oxidizing acids. Stainless steel for solvents and oils.
Variable Speed for Precise Dispensing
The B2 Vario speed controller adjusts flow rate from minimum to maximum — enabling precise filling, dosing, and container changeover without full-flow overspill. Essential for controlled dispensing of expensive or hazardous fluids.
IP24 / IP54 Protection — Industrial Ready
Motor protection class IP24 (splash-proof) or IP54 (dust and splash resistant) provides the protection required in industrial chemical environments where motor exposure to fluid mist and drips is unavoidable.
Complete System — Motor, Tube, Hose Included
Lutz pump sets include the motor, pump tube, and discharge hose as a matched, factory-tested system. No separate component sourcing, no compatibility uncertainty — one part number covers the complete installation.
| Part Number | 0205-411 |
| Product Type | Drum Pump Set |
| Product Name | Pumpenset - Explosionsgefährliche Medien |
| Drive Type | Electric Motor |
| Voltage | 230V |
| Frequency | 50 Hz |
| Power | 460W |
| Protection Class | IP54 |
| Explosion Protection | Ja |
| Pump Tube Material | Niro (Stainless Steel) |
| Impeller Material | ETFE |
| Impeller Type | Laufrad (Radiales Förderrad) |
| Drive Shaft Material | Stainless Steel 316Ti |
| Bearing Material | Edelkohle |
| Seal Type | Sealless (no media-contacting seals) |
| Mechanical Seal | No media-contacting seals |
| Max Flow Rate | 95 l/min |
| Max Flow with Nozzle | 50 l/min |
| Max Head | 14 mWS |
| Max Operating Pressure | 6 bar |
| Max Fluid Temperature | 100°C |
| Max Fluid Density | 1,6 kg/dm³ |
| Max Viscosity | 350 mPas |
| Immersion Depth | 1000 mm |
| Max Dip Tube Diameter | 41 mm |
| Discharge Thread | 1 1/4" |
| Hose Length | 2000 mm |
| Configuration | mit Unterspannungsauslöser |
Always verify compatibility with your specific concentration, temperature, and mixture. Contact PumpStop or Lutz for detailed chemical resistance data.
| Chemical compatibility | Always verify pump tube, impeller, and seal materials are compatible with your specific fluid, concentration, and temperature before installation. |
| Electrical safety | Requires a properly earthed 230V supply. Never connect to a different voltage. Protect motor with a correctly rated circuit breaker. |
| Explosion protection | This product carries ATEX explosion protection: Ja. Use only in the area classification for which it is rated. |
| Drum fit | Ensure the drum bung opening is compatible with the pump tube diameter before installation. The pump tube must not exceed the bung opening to ensure a leak-free, gas-tight connection. |
