Description

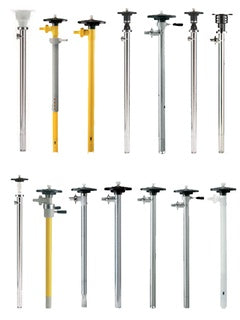

The Lutz 0175-201 is a Eccentric Screw Pump with a Stainless Steel 316Ti pump tube, drehstrom-driven. Delivers up to 120 l/min at up to 6 bar.
Eccentric Screw Technology — Viscous Fluid Specialist
Progressive cavity (eccentric screw) design transfers viscous, shear-sensitive, and structured fluids that centrifugal impellers would damage — creams, pastes, gels, adhesives, and high-viscosity chemicals.
Low Shear — Preserves Fluid Structure
Gentle, pulsation-free pumping action preserves the physical structure of shear-sensitive fluids. Recommended for polymer solutions, cosmetics, pharmaceutical products, and food-grade viscous materials.
PURE and SanitaryPlus Versions
SanitaryPlus versions meet hygienic design requirements for pharmaceutical and food applications. PURE versions use no metal wetted components for highest-purity chemical service.
Wide Viscosity Range
Handles fluids from thin liquids to high-viscosity pastes — a single pump covers a viscosity range that would require multiple pump types in a conventional centrifugal installation.
| Part Number | 0175-201 |
| Product Type | Eccentric Screw Pump |
| Product Name | Exzenterschneckenpumpwerk B70V Industrie |
| Drive Type | Drehstrom |
| Pump Tube Material | Stainless Steel 316Ti |
| Impeller Type | Gelenkwelle (hochviskose Medien) |
| Drive Shaft Material | Stainless Steel 316Ti |
| Rotor Material | Stainless Steel 316Ti |
| Stator Material | NBR hell (Nitrilbutadienkautschuk) |
| Seal Type | Gleitringdichtung (GLRD) |
| Mechanical Seal | WC, WC, FPM |
| Max Flow Rate | 120 l/min |
| Max Head (bar) | 6 bar |
| Max Fluid Temperature | 80°C |
| Max Viscosity | 120000 mPas |
| Immersion Depth | 1100 mm |
| Type / Model Code | B70V |
| Chemical compatibility | Always verify pump tube, impeller, and seal materials are compatible with your specific fluid, concentration, and temperature before installation. |
| Electrical safety | Connect only to the specified supply voltage. Protect motor with correctly rated overcurrent protection. |
| Explosion protection | Standard version is not explosion protected. For flammable fluids or hazardous locations, specify an ATEX-rated version. |
| Drum fit | Ensure the drum bung opening is compatible with the pump tube diameter before installation. The pump tube must not exceed the bung opening to ensure a leak-free, gas-tight connection. |
