Description
UPS 15-50 N 130 | The pump is of the canned rotor type, i. e. pumpand motor form an integral unit without shaftseal and with only two gaskets for sealing. The bearings are lubricatd by the pumped liquid. The pump has 3-step speed selector. The pump is characterized by: Ceramic shaft and radial bearings.
Carbon axial bearing.
Stainless steel rotor can and bearing plate.
Corrosion-resistant impeller, Composite.
Stainless steel pump housing. The motor is a 1-phase motor. No additional motor protection is required.
EAN
5700318306003
Approvals
CE
Built-in motor protection
NONE
Capacitor size - run
2 µF
Connection
PN 10
Country code
GB
Current in speed 1
0.16 A
Current in speed 2
0.2 A
Current in speed 3
0.23 A
Density
61.35 lb/ft³
Enclosure class (IEC 34-5)
IP44
Gross weight
5.29 lb
Housing
Stainless steel
Impeller
Composite
Insulation class (IEC 85)
F

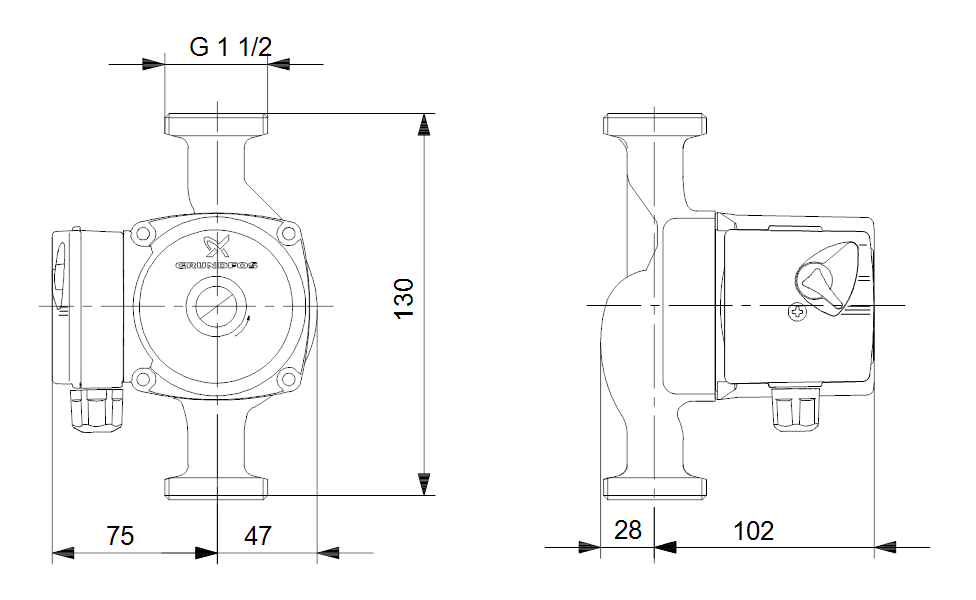

Length
130 mm
Liquid temperature range
35.6 .. 230 °F
Mains frequency
50 Hz
Material Pricing Group
58
Max. power input
50 W
Maximum head
16.4 ft
Maximum operating pressure
10 bar
Net weight
4.19 lb
Power input in speed 2
45 W
Pressure rating for connection
PN 10
Pump housing
Stainless steel
Pumped liquid
Water
Range of ambient temperature
32 .. 104 °F
Rated flow
7.79 US gpm
Rated head
8.304 ft
Rated voltage
1 x 230 V
Real Time
Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Selected liquid temperature
140 °F
Size of connection
1 1/2 inch
Speed no
3
Terminal box position
9H
TF class
110
Thermal protec
Impedance protected
Type of connection
G
Motor Curves
