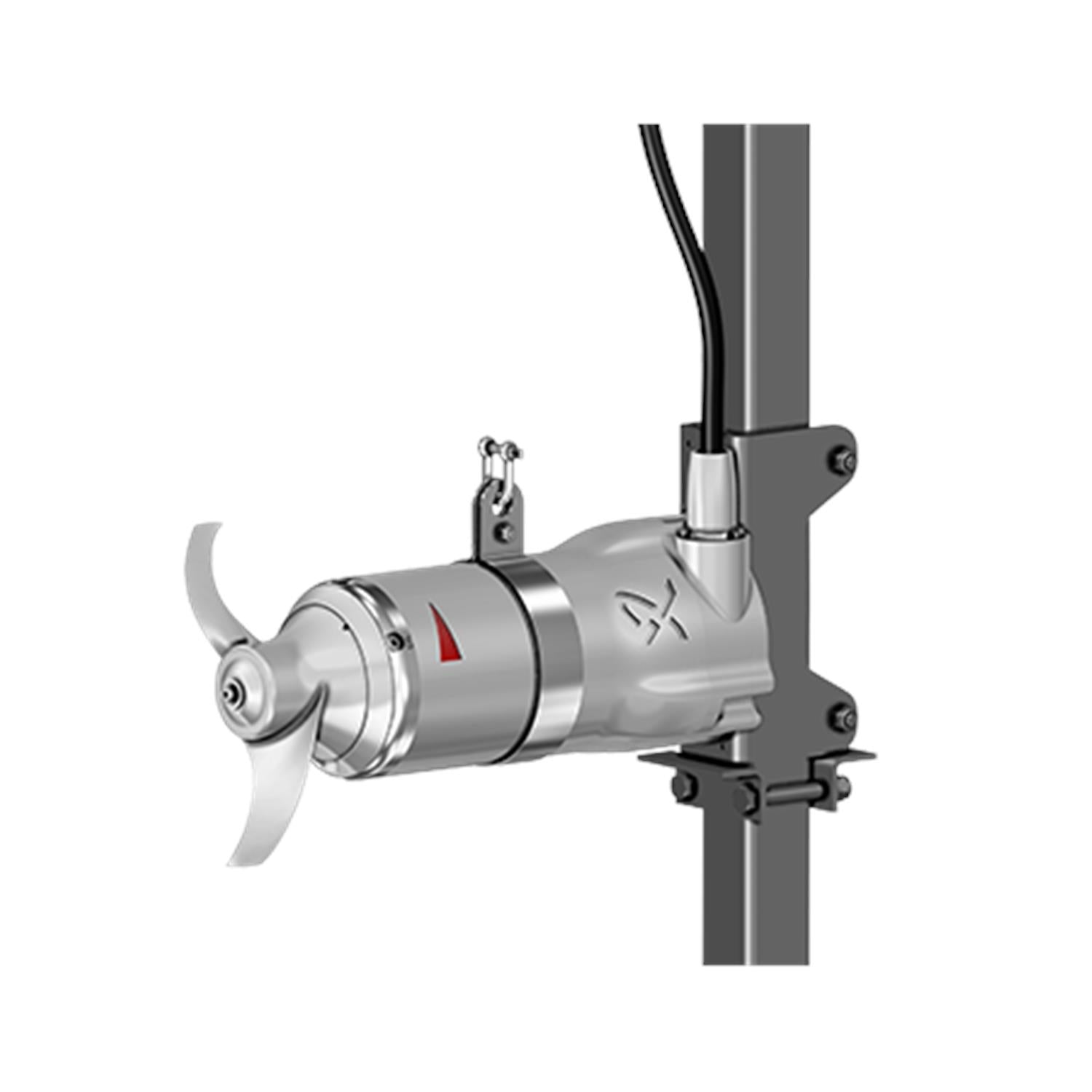

Image shown may not be actual product
Grundfos 98996011 - SMD.23.10 .1750.T.6.0H
Grundfos 98996011 - SMD.23.10 .1750.T.6.0H
Grundfos 98996011 - SMD.23.10 .1750.T.6.0H
Grundfos 98996011 - SMD.23.10 .1750.T.6.0H
Grundfos 98996011 - SMD.23.10 .1750.T.6.0H
Grundfos 98996011 - SMD.23.10 .1750.T.6.0H

Grundfos 98996011 - SMD.23.10 .1750.T.6.0H

GRUNDFOSSKU: 98996011
Price:
$7,102.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

SMD. 23. 10 . 1750. T. 6. 0H | The Grundfos range of horizontal submersible SMD mixers is designed for applications involving the mixing, i. e. the homogenisation and suspension, of low- to medium-viscosity liquids. The SMD mixers are fully made of stainless steel. The energy-efficient propeller is directly driven by the motor. The squirrel-cage induction motor is protected against overload by means of three bimetallic thermal switches (PTO) in the motor windings. Optionally three thermistors (PTC sensors) are available. The products are equipped with IE3 motor components. To prevent ingress of the surrounding liquid, the SMD mixers has a pre-sealing system being lip seals against a wear ring and as main sealing a double mechanical shaft seal cartridge consists of two mechanical seals. The outer seal is made of silicon carbide/silicon carbide and the inner sealing is Carbon ceramic. For mixers smaller than 2. 3hp an optional moisture switch can be built in and for mixers at 3. 0hp and higher the moisture switch is standard. In case of higher humidity the switch can be used to give an alarm. For mixers 3. 0hp and higher the oil-filled seal housing can be monitored for the ingress of water by an optional leak sensor incorporated in the seal housing. The sensor can trigger an alarm signal and/or switch off the motor by means of an external Grundfos relay, type ALR-20/A. The stainless-steel shaft rests on two ball bearings, lubricated for life. Motors range from 1. 3 to 4. 7 hp. A wide range of accessories made of stainless steel or galvanised steel ensures easy installation and long trouble-free operation.

EAN 5712604897409
Applications Wastewater
Motor efficiency at full load 1 0.862
Power factor 1 0.8
Rated voltage 3 x 460 V
Power input - P1 2 kW
Maximum installation depth 66 m
Cos phi - p.f. at 1/2 load 0.6
Maximum current consumption 0.6
Starting current 24 A
Pump outlet 0.6
Pump inlet 0.6
Connect code 0.6
Mains frequency 60 Hz
Insulation class (IEC 85) F
Cos phi - p.f. at 3/4 load 0.73
Motor efficiency at 1/2 load 0.86
Built-in motor protection PTO (THERMAL SWITCH)
Net weight 79.4 lb
Number of poles 4
Start. method direct-on-line
Rated power - P2 1.7 kW
Enclosure class (IEC 34-5) IP68
Motor efficiency at 3/4 load 0.87
Rated current 3.4 A
Voltage tolerance +10/-10 %
Explosion proof no
Type of cable plug NO
Length of cable 10 m
Moisture sensor with moisture sensors
pH-value range 45203
Water-in-oil sensor without water-in-oil sensor
Rated flow 1450 US gpm
Thrust to power 0.189
Diameter 9.84 in
Motor AISI 1.4408
Power 1 2 kW
Motor standard NEMA
Axial trust force 340 N
Curve tolerance ISO9906:2012 3B
Primary shaft seal LIP SEAL
Propeller speed 1750 rpm
Mean velocity 1.86 m/s
Standard NEMA
Propeller diameter 250 mm

Motor Curves

Dimensional Drawing

DWiring Diagram
