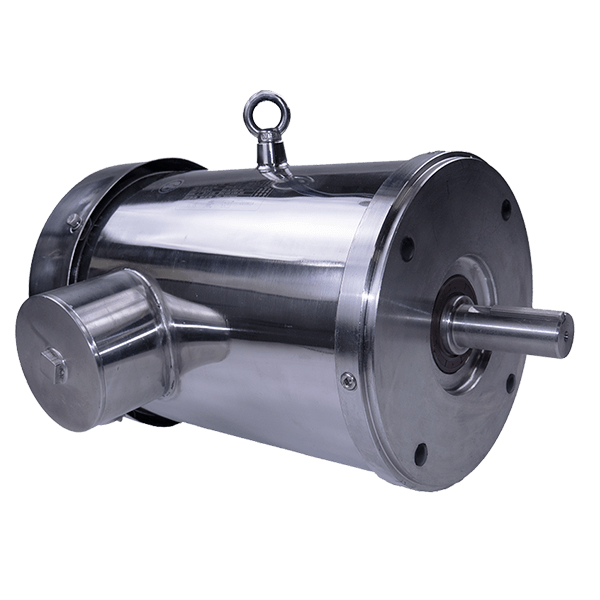

![Premium Efficient Stainless Steel Motor, 0.75HP, 3600 RPM, 230/460V, 56C Frame, C-Face Round Body (Footless)]()
![Premium Efficient Stainless Steel Motor, 0.75HP, 3600 RPM, 230/460V, 56C Frame, C-Face Round Body (Footless)]()
Description
WorldWide Electric Wash-down, Stainless Steel Motors:
SSPE .75 HP 3600 RPM 3 PH 60 Hz 208-230/460V 1.15 SF 56C FRAME, TEFC, STAINLESS STEEL WASHDOWN MOTOR, STAINLESS STEEL, PREMIUM EFFICIENCY, C-FACE ROUND BODY (FOOTLESS) MOUNTING
Category
Electric Motors
Subcategory
Stainless Steel / Washdown Duty Motors
Approximate Weight (lbs)
32
Area of Classification
Div.2 Class I, Gr. A,B,C&D T2B
Breakdown Torque (BDT)
300%
Connection Diagram
9 Lead 2Y/Y
DE Bearing
6205 2RS
DE Regreasing Interval
No Need
Degree of Protection
IP69K
Duty Cycle
S1
Efficiency 100%
80%
Efficiency 50%
70%
Efficiency 75%
77%
Enclosure Type
TEFC
F1/F2 Suitable
Unsuitable
Frame Size
56C
Frequency
60 HZ
Full Load Amps @ 208V
2.3
Full Load Amps @ 230V
2.2
Full Load Amps @ 460V
1.1
Full Load RPM
3500
Full Load Torque
1.1 lb.ft.
Grease Quantity
No Need
Grease Type
Mobil Polyrex EM
Horsepower
0.75
Insulation Class
Class F
Inverter Rating
10:1 CT/20:1 VT
Locked Rotor Amps @ 230V
25
Locked Rotor Amps @ 460V
12.5
Locked Rotor Time (Hot)
12 seconds
Locked Rotor Torque
285%
Max. Ambient Temperature
40°C
Max. Elevation
3300 ft
Moment of Inertia
0.05 lb.ft.^2
Mounting Type
C-Face Round Body (Footless)
NEMA Code Letter
P
NEMA Design
B
No Load Current @ 230V
1.10
No Load Current @ 460V
0.55
Number of Starts/Hr
12
ODE Bearing
6205 2RS
ODE Regreasing Interval
No Need
Phase
Three-Phase
Poles
2
Power Factor 100%
90%
Power Factor 50%
72%
Power Factor 75%
81%
Rotation
Bidirectional
RPM
3600
Service Factor
1.15
Shaft Material
sus304
Slip
2.78%
Sound Pressure Level
75 dB(A)
Standard
NEMA MG1, UL1004
Temperature Rise (C)
80 C
Terminal Box Location
F1
Voltage
230/460
