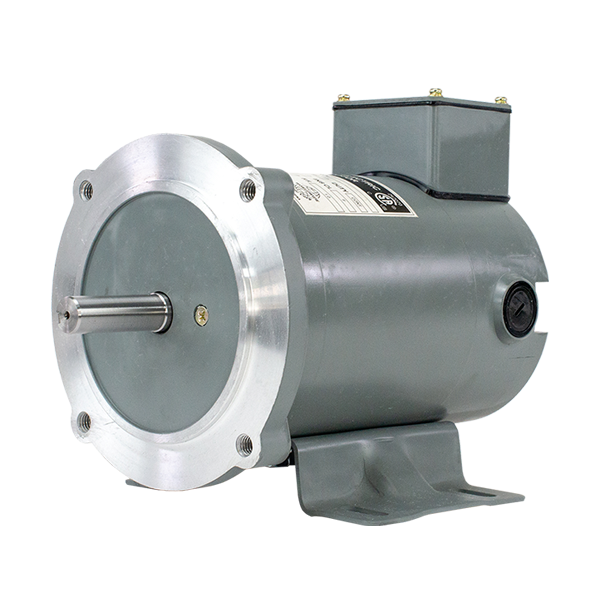

Permanent Magnet DC Motor, 0.25 HP, 1800 RPM, 90V, 56C Frame, C-Face with Removable Base
Permanent Magnet DC Motor, 0.25 HP, 1800 RPM, 90V, 56C Frame, C-Face with Removable Base

Permanent Magnet DC Motor, 0.25 HP, 1800 RPM, 90V, 56C Frame, C-Face with Removable Base

WorldWide ElectricSKU: WPMDC14-18-90V-56CB
Price:
$271.57
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric DC Motors:

WPMDC .25 HP 1800 RPM 90V DC 56CB FRAME, TENV, PERMANENT MAGNET DC MOTOR, ROLLED STEEL, C-FACE REMOVABLE BASE MOUNTING

Category Electric Motors
Subcategory Permanent Magnet DC Motors
Approximate Weight (lbs) 17
Degree of Protection IP54
Enclosure Type TENV
FL Efficiency (%) 80.0
Frame Size 56C
Full Load Amps 2.9
Horsepower 0.25
Insulation Class Class F
Mounting Type C-Face with Removable Base
RPM 1800
Service Factor 1.0
Voltage 90

Motor Curves
