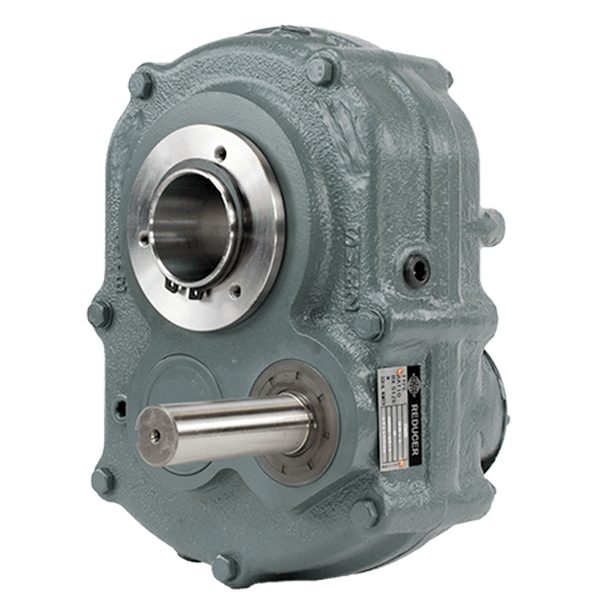

Original Shaft Mount Reducer, Box Size 9, 15:1 Ratio
Original Shaft Mount Reducer, Box Size 9, 15:1 Ratio

Original Shaft Mount Reducer, Box Size 9, 15:1 Ratio

WorldWide ElectricSKU: SMR9-15/1
Price:
$13,801.36
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Shaft Mount Gear Reducers:

ORIGINAL SHAFT MOUNT REDUCER BOX SIZE 9 RATIO 15:1 ACTUAL RATIO 15.12:1 MAX BORE 4-15/16in TAPERED, INPUT SHAFT 2-7/16in MAX INPUT RPM 1814 MAX OUTPUT TORQUE 90456-LBS MAX SERVICE CLASS I INPUT HP 75

Category Gear Reducers
Subcategory Shaft Mount Reducers
Actual Ratio 15.12
Approximate Weight (lbs) 760
Bore Type Tapered
Box Size 9
Max Input RPM 1814
Max Output RPM 120
Output Bore (Max.) 4 - 15/16"
Ratio 15:1
Warranty Length Two Year

Motor Curves
