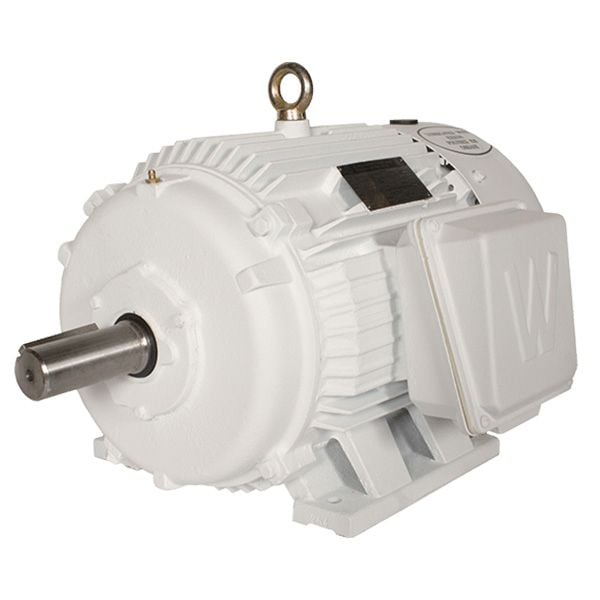

Image shown may not be actual product
Oil Well Pump Motor, 150 HP, 1200 RPM, 230/460/796V, 449T Frame, Rigid Base - OW150-12-449T
Oil Well Pump Motor, 150 HP, 1200 RPM, 230/460/796V, 449T Frame, Rigid Base - OW150-12-449T

Oil Well Pump Motor, 150 HP, 1200 RPM, 230/460/796V, 449T Frame, Rigid Base - OW150-12-449T

This item ships free!
WorldWide ElectricSKU: OW150-12-449T
Price:
$11,206.51
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Oil Well Pump Motors:

OW 150 HP 1200 RPM 3 PH 60 Hz 230/460/796V 1.15 SF 449T FRAME, TEFC, DESIGN D OIL WELL PUMP MOTOR, CAST IRON, STANDARD EFFICIENCY, RIGID MOUNTING, F2 TERMINAL BOX LOCATION

Supplier Part Number 8501.53.4080
Category Electric Motors
Subcategory Oil Well Pump Motors
Degree of Protection IP55
Enclosure Type TEFC
FL Efficiency (%) 94.5
Frame Size 449T
Frequency 60/50 HZ*
Full Load Amps 174
Horsepower 150
Insulation Class Class F
Mounting Type Rigid Base
Phase Three-Phase
RPM 1200
Service Factor 1.15
Voltage 230/460/796

Motor Curves
