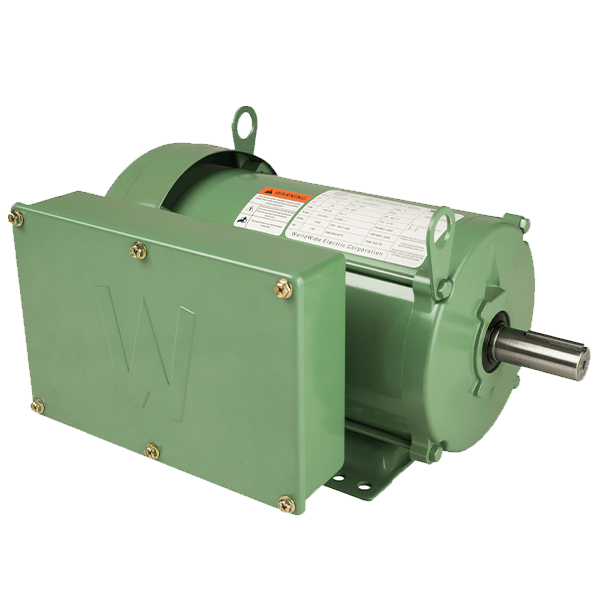

Farm Duty Motor, 3 HP, 1800 RPM, 230V, 184T Frame, Rigid Base
Farm Duty Motor, 3 HP, 1800 RPM, 230V, 184T Frame, Rigid Base

Farm Duty Motor, 3 HP, 1800 RPM, 230V, 184T Frame, Rigid Base

WorldWide ElectricSKU: FD3-18-184T
Price:
$552.69
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Farm Duty Motors:

FD 3 HP 1800 RPM 1 PH 60 Hz 208-230V 1.15 SF 184T FRAME, TEFC, FARM DUTY MOTOR, ROLLED STEEL, STANDARD EFFICIENCY, RIGID MOUNTING

Supplier Part Number 8501.40.6040
Category Electric Motors
Subcategory Farm Duty Motors
Approximate Weight (lbs) 76
Degree of Protection IP55
Enclosure Type TEFC
FL Efficiency (%) 84.4
Frame Size 184T
Frequency 60 HZ
Full Load Amps 12.5
Horsepower 3
Insulation Class Class F
Mounting Type Rigid Base
Phase Single-Phase
RPM 1800
Service Factor 1.15
Voltage 230
