Description

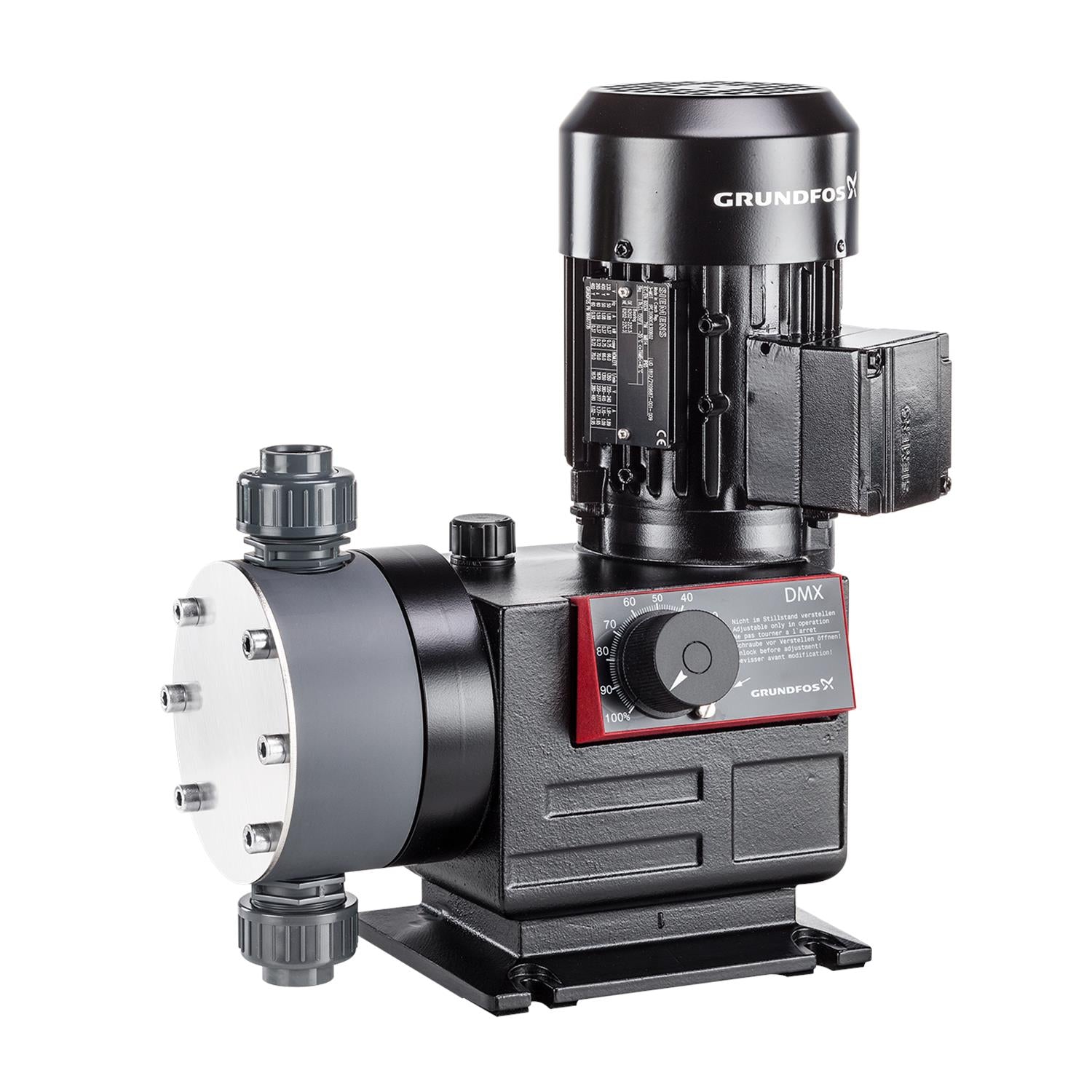

DMX 321-6 B-PP/T/T-X-E1U3U3XEMAG | The pump of the DMX series is a versatile positive displacement diaphragm dosing pump. The diaphragm is coupled mechanically via a precise gear-eccenter-tapet-system to a high efficiency AC motor. The dosing capacity is adjusted by varying the stroke length at the stroke adjustment knob in the ratio 1: 10. The liquid end is composed of: Dosing head
PTFE coated diaphragm
Single ball valvesOther features: Robust industrial pump with aluminium enclosure
Easy to install and operate design
Long life PTFE coated diaphragm
Optimum capacity and stroke frequency graduation
Dosing flow variation < ±1. 5%, linearity
±4%Applies only to pumps with: ATEX certification The dosing pump DMX 226 is certified according to the ATEX guideline RL 94/9/EC for non-electrical operating supplies. The motor versions EEx e and EEx d defined by Grundfos/Alldos are certified by the manufacturers according to ATEX guidelines for electrical operating supplies. The motor type plate is labelled according to ATEX. Electronics features: Applies only to pumps with control variant: AR Etron Profi microprocessor electronics, direct attached to motor: Stroke frequency adjustable from 1 stroke/min to maximum stroke frequency
Pulse control with multiplier and divisor
Analog signal control 0/4-20 mA
Level control with input for two level signals.
Pulse, analog and remote on/off input
Analog output
Alarm relay outputStroke output
Input for dosing controller and diaphragm monitoring sensor Applies only to pumps with control variant: AT0Automatic adjustment of stroke length via direct drive control or mA-input signal
Block-proof synchronous motor with feedback potentiometer
Two limit switches
For further specifications please refer to servomotor
PTFE coated diaphragm
Single ball valvesOther features: Robust industrial pump with aluminium enclosure
Easy to install and operate design
Long life PTFE coated diaphragm
Optimum capacity and stroke frequency graduation
Dosing flow variation < ±1. 5%, linearity
±4%Applies only to pumps with: ATEX certification The dosing pump DMX 226 is certified according to the ATEX guideline RL 94/9/EC for non-electrical operating supplies. The motor versions EEx e and EEx d defined by Grundfos/Alldos are certified by the manufacturers according to ATEX guidelines for electrical operating supplies. The motor type plate is labelled according to ATEX. Electronics features: Applies only to pumps with control variant: AR Etron Profi microprocessor electronics, direct attached to motor: Stroke frequency adjustable from 1 stroke/min to maximum stroke frequency
Pulse control with multiplier and divisor
Analog signal control 0/4-20 mA
Level control with input for two level signals.
Pulse, analog and remote on/off input
Analog output
Alarm relay outputStroke output
Input for dosing controller and diaphragm monitoring sensor Applies only to pumps with control variant: AT0Automatic adjustment of stroke length via direct drive control or mA-input signal
Block-proof synchronous motor with feedback potentiometer
Two limit switches
For further specifications please refer to servomotor
EAN
5713834061820
Applications
Dosing & Disinfection
Material Pricing Group
62
Density
62.29 lb/ft³
Size of inlet connection
19/27, 20/25
Selected liquid temperature
68 °F
Power input P1
0.4 kW
Rated voltage
3 x 230/400 V
Pumped liquid
Water
Size of outlet connection
19/27, 20/25
Liquid temperature range
32 .. 104 °F
Mains frequency
50 Hz
Net weight
41.9 lb
Gross weight
66.7 lb
Enclosure class (IEC 34-5)
IP65
Type of outlet connection
Connection pack
Frequency converter
Not prepared for VFD
Control variant
Standard
Max. frequency
50 Hz
Nominal flow rate at 50 Hz
321 l/h
Approvals
CE
Power 1
0.4 kW
Housing
Aluminium
Number of dosing heads
1
Gasket
PTFE
Valve ball
Composite
Connection
19/27
Pump housing
Aluminium
Cable included (Yes/No)
N
Type of inlet connection
Connection pack
Non return valve type, inlet pump 1
Standard
Maximum permissible inlet pressure
0 bar
Power plug
No plug
