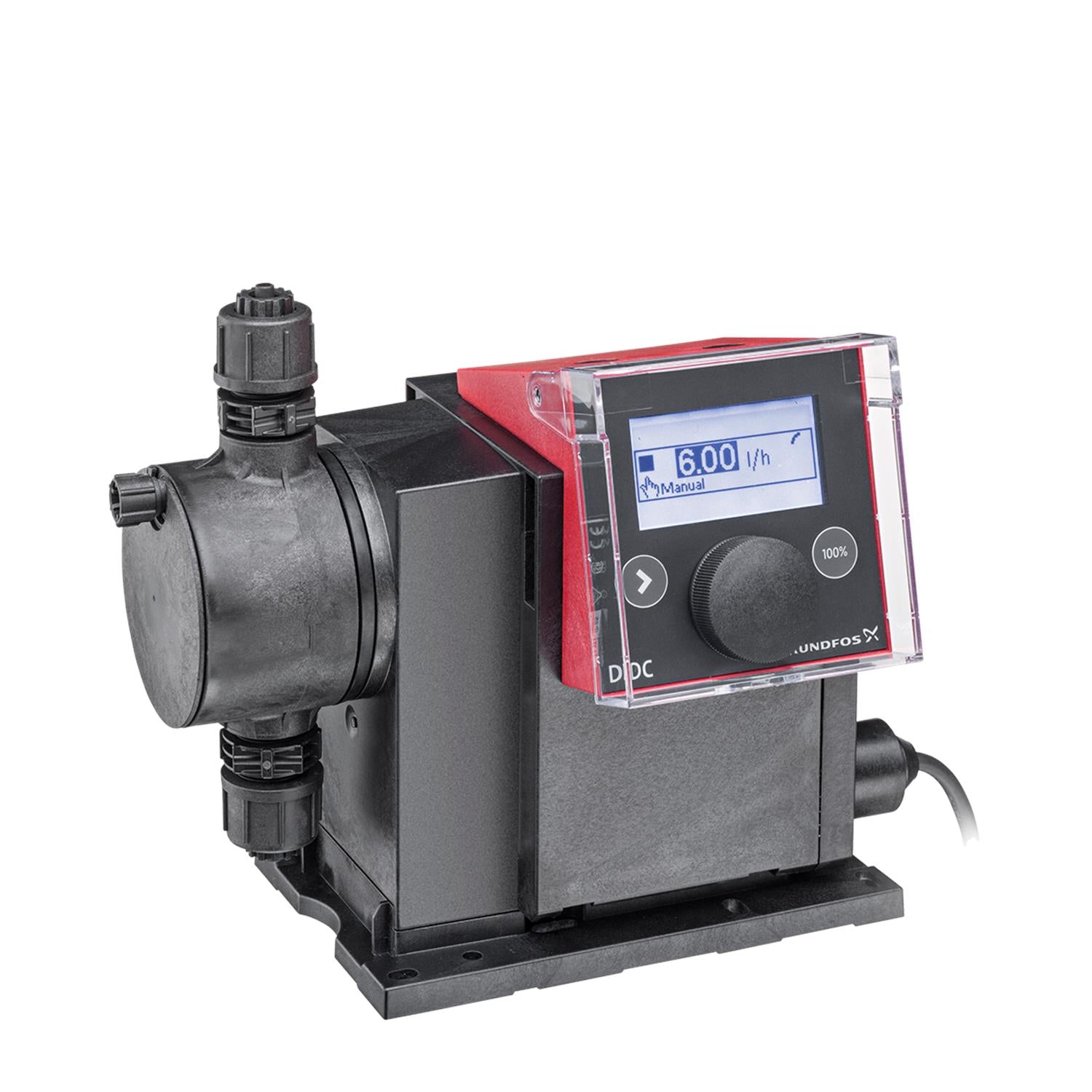

Grundfos 97721370 - DDC 6-10
Grundfos 97721370 - DDC 6-10
Grundfos 97721370 - DDC 6-10
Grundfos 97721370 - DDC 6-10

Grundfos 97721370 - DDC 6-10

GRUNDFOSSKU: 97721370
Contact for price
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

DDC 6-10 | DDC 6-10 AR-PVC/V/C-F-31U2U2FGThe SMART Digital DDC is a compact positive displacement, diaphragm dosing pump with variable-speed drive (stepper motor) and intelligent control electronics with minimum energy consumption. The SMART Digital Dosing series operates at full stroke length to ensure optimum accuracy, priming and suction, even for high-viscosity or degassing liquids. The duration of each discharge stroke varies according to the capacity set, resulting in optimum smooth and continuous discharge flow. The click-stop mounting plate allows installation in three different positions without using any additional accessories. The control cube can be turned easily into front, left or right position. The click wheel and the multi-coloured backlit graphical, plain-text LC display make commissioning and operation intuitive. The control elements are protected by a transparent cover. The dosing head is composed of: Long lifetime and universal, chemically resistant full-PTFE diaphragm.
Double ball valves for highest dosing accuracy.
Deaeration valve for easy start-up. Operation modes: Manual dosing in ml/h, I/h or gph.
Pulse control in ml/pulse (incl. memory function).
Analog control 0/4-20 mA. Other features: Two SlowMode steps (anti-cavitation), 50 % (maximum flow= 0. 7925 US gal/hour) and 25 % (maximum flow= 0. 3963 US gal/hour), e. g. for high-viscosity or degassing liquids.
Service information display to show when service and which wear-part order number is required.
Two-step key lock function to protect the pump against unauthorised access.
Additional display function to provide further information, e. g. the actual mA input signal.
Counter for total dosed volume (resettable), operating hours and others.
Save and load customised settings as well as reload of factory settings. Signal inputs/outputs: Input for pulse, analog 0/4-20mA, external stop.
Input for low-level and empty-tank signal.
Two potential-free output relays for max. 30 V AC/DC (configurable, e. g. alarm, stroke signal, pump dosing, etc. )

EAN 5710622715118
Applications Dosing & Disinfection
Material Pricing Group 68
Finnish LVI No. 4981116
Density 62.29 lb/ft³
Maximum operating pressure 10 bar
Selected liquid temperature 68 °F
Rated voltage 1 x 100-240 V
Pumped liquid Water
Power input - P1 22 W
Pump outlet 4/6, 6/9, 6/12, 9/12 mm
Pump inlet 4/6, 6/9, 6/12, 9/12 mm
Liquid temperature range 14 .. 113 °F
Mains frequency 50 / 60 Hz
Net weight 4.41 lb
Gross weight 6.62 lb
Enclosure class (IEC 34-5) IP65 / NEMA 4X
Pulse control YES
Level control YES
Control panel FRONT-MOUNTED
Type of cable plug EU
Length of cable 1.5 m
Range of ambient temperature 32 .. 113 °F
Maximum power input - P1 22 W
Control variant AR
Approvals CE
Type key DDC 6-10 AR-PVC/V/C-F-31U2U2FG
Valve type Standard
Power 1 22 W
Max. Flow 6 l/h
Type No installation set
Gasket FKM
Min flow 6.0 ml/h
Max. flow in slow mode 50% 3 l/h
Valve ball Ceramic
Analog input 0/4-20 MA
Inrush current 25A at 230V for 2ms
Max. flow in slow mode 25% 1.5 l/h
Turn-down ratio 0.7361111111111112
