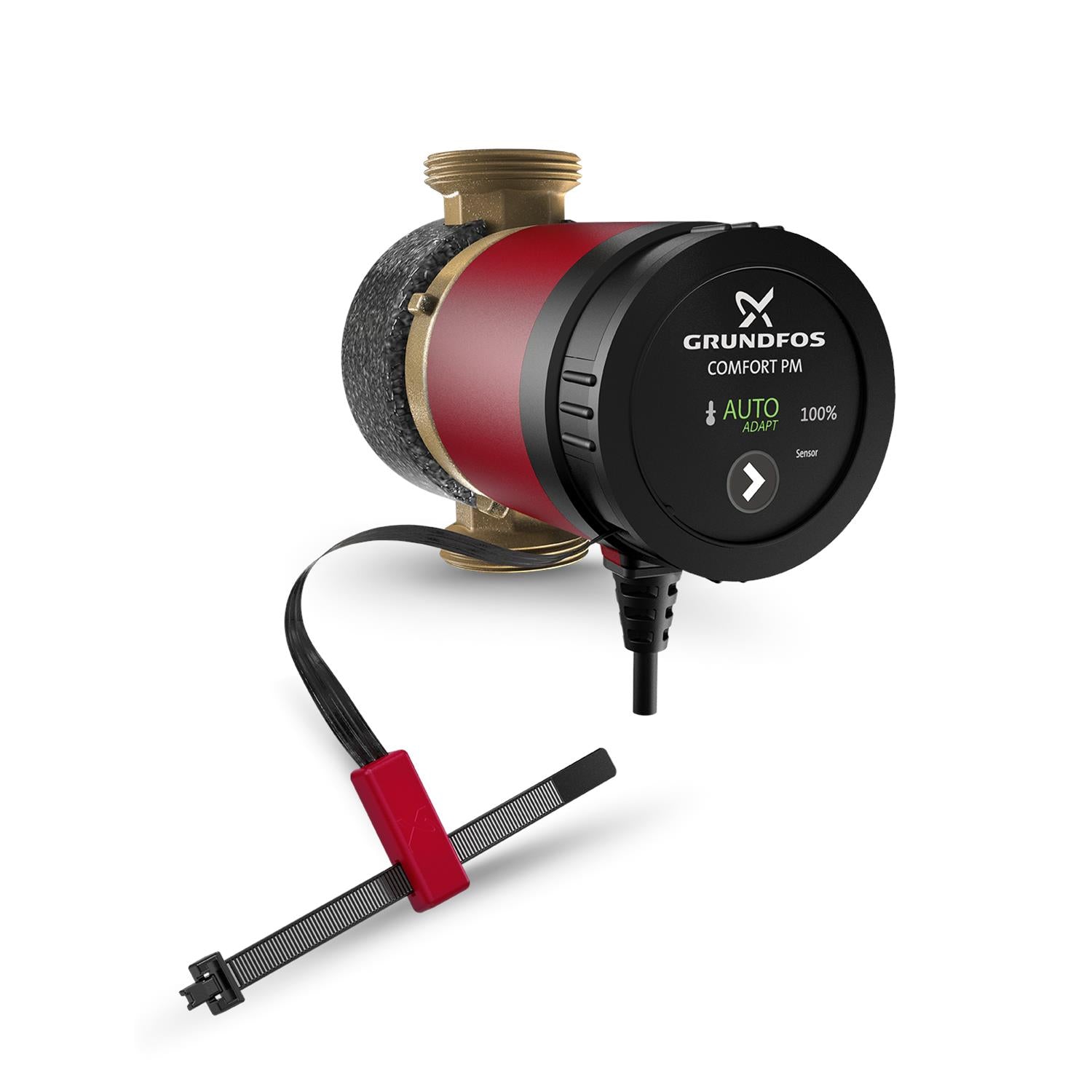

Grundfos 99412493 - COMFORT 10-16 T PM BU/LC
Grundfos 99412493 - COMFORT 10-16 T PM BU/LC

Grundfos 99412493 - COMFORT 10-16 T PM BU/LC

Save $127.00
GRUNDFOSSKU: 99412493
Price:
$263.00 $390.00
Typically In Stock – standard inventory item, typically available in 1 business days
Chat or Call for most up to date lead times. (781) 281-8905

Description

COMFORT 10-16 T PM BU/LC | The Grundfos COMFORT 10-16 T PM BU/LC pumps are designed for recirculation of domestic hot water in single and two-family houses securing hot water instantly to all faucets. The pumps have a corrosion-resistant pump housing suitable for drinking water and are powered by a single-phase, high-efficiency ECM with permanent-magnet rotor. The pump has an integrated temperature control mode that controls the circulation of domestic hot water based on the liquid temperature measured in the pump. The temperature control mode uses an integrated temperature sensor to switch the pump on and off based on preset temperature limits. These dynamic temperature limits are set automatically. Manual setting is not needed. Additionally, the pump can be set to continuous 100 % mode. COMFORT 10-16 T PM BU/LC has a built-in isolating valve and a non-return valve. This ensures that maintenance can be carried out without draining the system. The non-return valve also prevents reversed flow during operation. Features and benefits: Continuous 100 % mode for commissioning and temperature control mode to save heat energy.
Quick and simple electrical installation.
Dry-running protection protects the pump against dry running during startup and normal operation.
Easy-to-clean and lime-resistant spheric rotor.
Noiseless operation due to liquid-lubricated bearing.
No leakage risk due to a static seal.
Easy maintenance and cleaning through the easy-to-separate pump head.
No additional motor protection necessary due to integrated motor electronics.

Density 61.35 lb/ft³
Maximum operating pressure 145.04 psi
Selected liquid temperature 140 °F
Type of connection NPSM
Rated voltage 1 x 115-230 V
Thermal protec Impedance protected
Pumped liquid Water
Liquid temperature range 35.6 .. 203 °F
Insulation class (IEC 85) F
Built-in motor protection NONE
Net weight 3.07 lb
Max. power input 6 W
Capacitor size - run 0.6 µF
Gross weight 3.3 lb
Current in speed 3 0.1 A
Enclosure class (IEC 34-5) IP44
Pressure rating for connection PN 10
Cable type Connecting cord with plug
Pipe connection 1 1/4" NPSM
Type of cable plug NEMA 1-15P
Approvals UL,CSA
Rated flow 1.45 US gpm
Head max 5.25 ft
Length 3 1/8 in
Housing Brass
Rated head 1.841 ft
TF class 95
Type Connecting cord with plug
Connection PN 10
Impeller Composite
Pump housing Brass

Motor Curves
