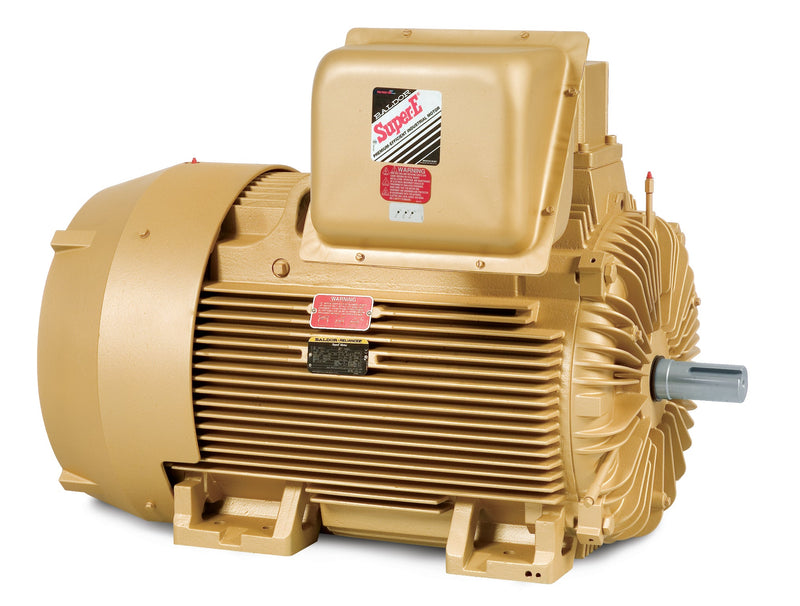

Image shown may not be actual product
![Baldor EM4410T-5 - 125HP, 1785RPM, 3PH, 60HZ, 444T, A44076M, TEFC - Three Phase Enclosed]()
![Baldor EM4410T-5 - 125HP, 1785RPM, 3PH, 60HZ, 444T, A44076M, TEFC - Three Phase Enclosed]()
Description
Baldor-Reliance Three Phase Enclosed:
125HP, 1785RPM, 3PH, 60HZ, 444T, A44076M, TEFC
Product Code: EM4410T-5
UPC
781568502006
Supplier Part Number
EM4410T-5
Category
AC Motors
Subcategory
Three Phase Enclosed
Product Family
Other
Agency Approvals
CCSAUSEEV, CURUSEEV
Ambient Temperature
40 °C
Approximate Weight (lbs)
1669.0
Auxillary Box
No Auxillary Box
Base Indicator
Rigid
Bearing Grease Type
Polyrex EM (-20F +300F)
Catalog Number
EM4410T-5
Current @ Voltage
115.000 A @ 575.0 V
Design Code
B
Drip Cover
No Drip Cover
Duty Rating
CONT
Efficiency @ 100% Load
95.4 %
Enclosure
TEFC
Feedback Device
NO FEEDBACK
Frame
444T
Frame Material
Cast Iron
Frequency
60.00 Hz
Haz Area Class and Group
NONE
Haz Area Division
Not Applicable
Heater Indicator
No Heater
High Voltage Full Load Amps
115.0 a
Insulation Class
F
Inverter Code
Not Inverter
KVA Code
G
Lifting Lugs
Standard Lifting Lugs
Motor Lead Quantity/Wire Size
3 @ 1 AWG
Motor Letter Type
Three Phase
Motor Standards
NEMA
Motor Type
A44076M
Mounting Arrangement
F1
Number of Poles
4
Output
125.000 hp
Output @ Frequency
125.000 HP @ 60 HZ
Overall Length
44.75 IN
Phase
3
Power Factor
85
Pulley End Bearing Type
Ball
Pulley Face Code
Standard
Service Factor
1.15
Shaft Diameter
3.375 IN
Shaft Ground Indicator
No Shaft Grounding
Shaft Rotation
Reversible
Shaft Slinger Indicator
No Slinger
Speed
1785 rpm
Speed Code
Single Speed
Starting Method
Direct on line
Synchronous Speed
1,800 rpm
Synchronous Speed @ Frequency
1800 RPM @ 60 HZ
Thermal Device - Bearing
None
Thermal Device - Winding
None
Voltage
575 V
Voltage @ Frequency
575.0 V @ 60 HZ
