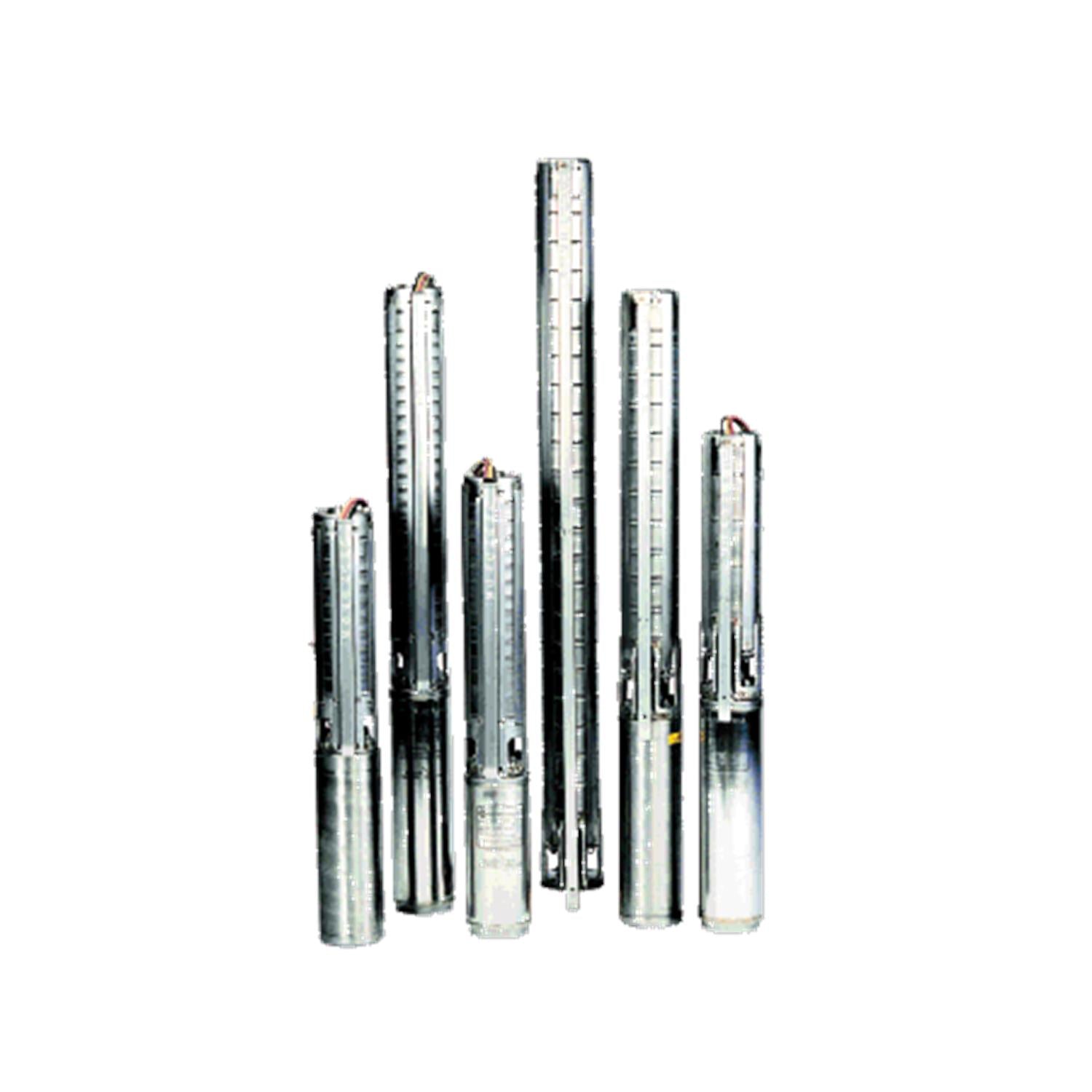

Image shown may not be actual product
Grundfos 10313656 - 16S75-56
Grundfos 10313656 - 16S75-56
Grundfos 10313656 - 16S75-56
Grundfos 10313656 - 16S75-56
Grundfos 10313656 - 16S75-56
Grundfos 10313656 - 16S75-56

Grundfos 10313656 - 16S75-56

GRUNDFOSSKU: 10313656
Price:
$12,459.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

16S75-56 | Multi-stage submersible pump for raw water supply, groundwater lowering and pressure boosting. Thepump is suitable for pumping clean, thin, non-agressiveliquids without solid particles or fibers. horizontal and vertical installation. The pump is fitted with a built-in non-return valve. The motor is a 3-phase motor of the cannedtype with a sand shield, liquid-lubricated bearingsand pressure-equalizing diaphragm.

Maximum operating pressure 870.23 psi
Power factor 1 0.82-0.80-0.77
Type of connection NPT(M)
Rated voltage 3 x 440-460-480 V
Thermal protec external
KVA code J
Starting current 490-520-550 %
Liquid temperature range 5 .. 104 °F
Insulation class (IEC 85) F
Built-in motor protection NONE
Net weight 165.0 lb
Rated speed 3470-3480-3490 rpm
Gross weight 221.0 lb
Rated power - P2 7.5 HP
Size of connection 1 1/4 inch
Maximum outlet pressure 755.65 psi
Enclosure class (IEC 34-5) IP68
Power (P2) required by pump 7.5 HP
Shaft Product name:16S75-56
Rated current 13.2-13.0-13.0 A
Cable type ROUND SINGLE
Service factor 1.15
Length of cable 9.84 ft
Windings Enamelled
Minimum efficiency index, MEI ≥ 0.7
Power cable type ROUND SINGLE
Motor type MS6000
Motor diameter 6 inch
Minimum borehole diameter 5.71 in
Motor flange design Grundfos
Pump speed on which pump data are based 3450 rpm
Stages 56
Shaft seal for motor SIC/SICNBR
Approvals CULDWUS,CCSAUS
Rated flow 17.6 US gpm
Model A
Version T40
Diameter 5.71 in
Motor Stainless steel
Approvals for drinking water PROP65
Return valve YES
Rated head 1194 ft
Type ROUND SINGLE
Curve tolerance ISO9906:2012 3B
Motor version T40
Impellers NONE
Valve YES
Connection 1 1/4 inch
Impeller Stainless steel
Number of reduced-diameter impellers NONE
Pump 7.5 HP
